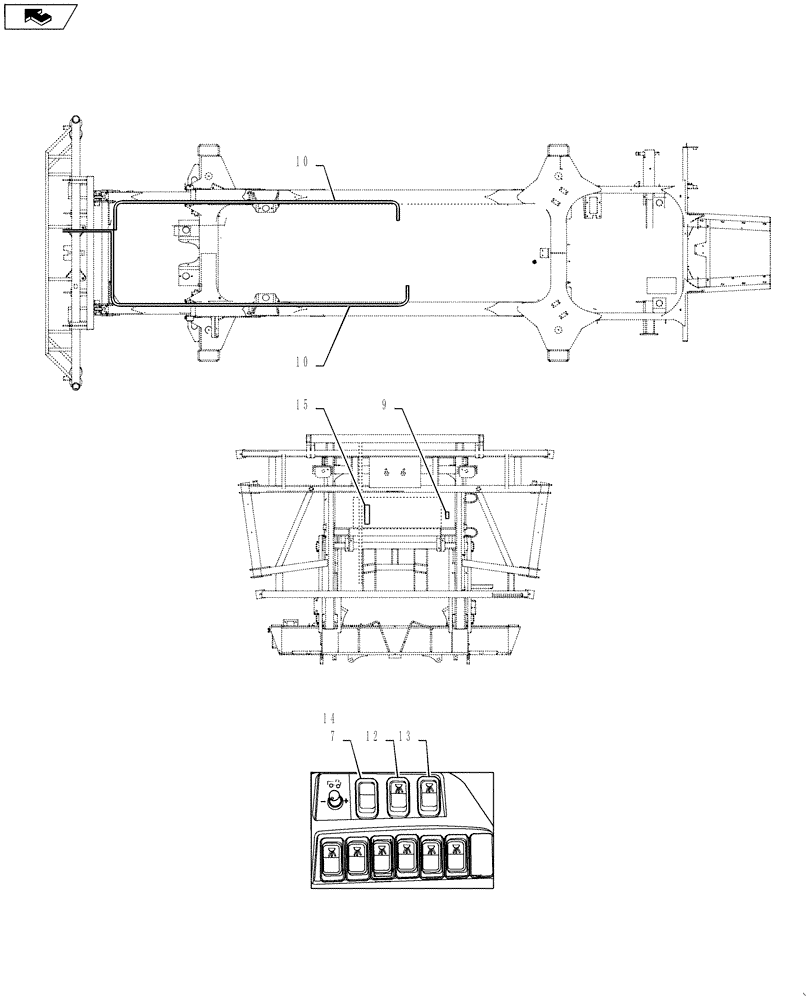

Запчасти Case IH 4420 (12-044) - AIM COMMAND ELECTRICAL GROUP (06) - ELECTRICAL

1

NSS

NOT SOLD SEPARAT

GROUP, B VALVE ISOLATORS

1шт.

See Fig. 12-051

1шт.

2

515-24444

CLAMP,44.4mm ID, 11.9mm Bolt Hole, P Type

1шт.

Not Shown

1шт.

3

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

Not Shown

1шт.

4

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

8шт.

Not Shown

1шт.

5

9991588

NUT,M8 x 1.25, Cl 8

4шт.

Not Shown

1шт.

6

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

9шт.

Not Shown

1шт.

7

87270709

SWITCH

NGR, ON-OFF-ON

1шт.

8

87271089

BRACKET, SUPPORTING

AIM CMD, Rear

1шт.

Not Shown

1шт.

9

87271580

SENSOR

pressure aim command

1шт.

10

87630216

HARNESS

aim command, rear

1шт.

See Fig. 12-058

1шт.

11

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

1шт.

Not Shown

1шт.

12

BN321908

SWITCH

AIM CMD PRES ADJ

1шт.

13

BN321909

PRESSURE SWITCH

AIM CMD PRES SET

1шт.

14

BN322921

SWITCH

rocker aim command system

1шт.

15

87271226

MODULE, AIM CMD BY-PASS

1шт.

See Fig. 12-055

1шт.
