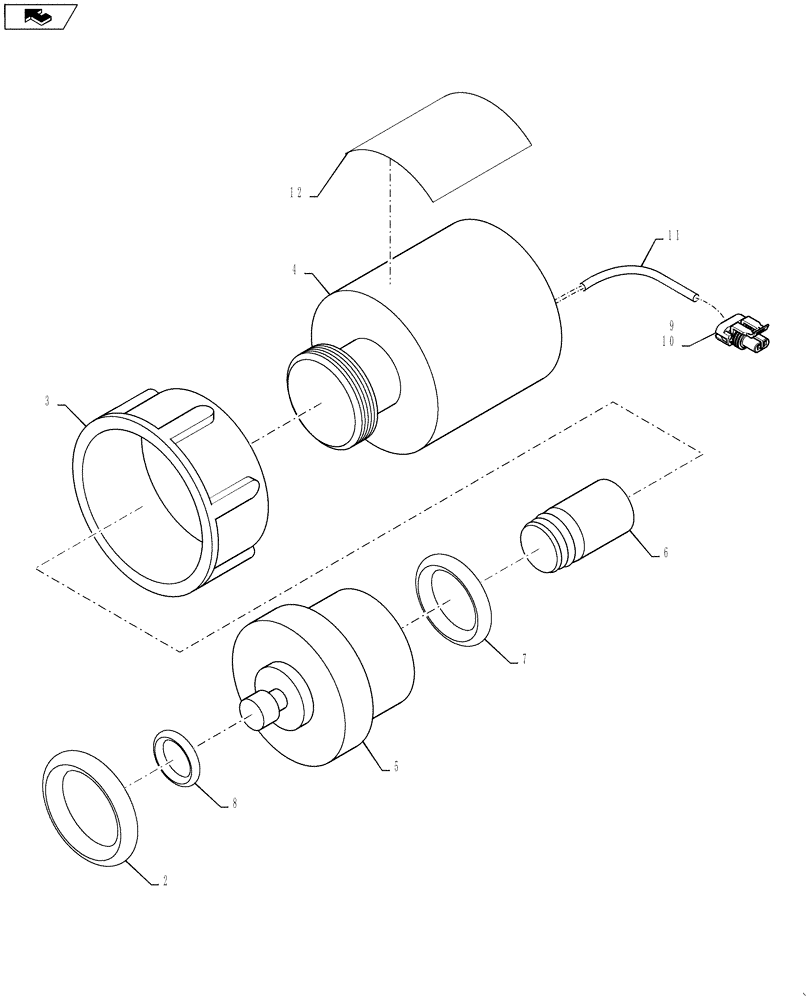

Запчасти Case IH 4420 (12-042) - SOLENOID, AIM, ARAG 150P (06) - ELECTRICAL

0

87271451

SOLENOID

Aim Command, Arag, 150PSI

1шт.

1

NS

NOT SERVICED

Tower, 2 Pin

1шт.

2

87272506

O-RING

Arag-115 Viton

1шт.

3

84249074

CAP

Flynut, Arag

1шт.

4

87272502

SOLENOID

Coil Assembly, 7W, Overmolded

1шт.

5

87272507

HYDRAULIC VALVE

Grip Body, Arag

1шт.

6

87272503

PLUNGER

Assembly, PFE

1шт.

7

87272504

O-RING

0.015, Viton

1шт.

8

87272505

O-RING

0.008, Viton

1шт.

9

NS

NOT SERVICED

Socket Terminal

2шт.

10

NS

NOT SERVICED

Cable Seal, Green

2шт.

11

NS

NOT SERVICED

Tubing, Black Plastic

7"шт.

12

NS

NOT SERVICED

Decal, Identification

1шт.
