Запчасти Case IH 4420 (12-039) - AIM 90’ X 20" SOL GROUP, WILGER 6 (06) - ELECTRICAL

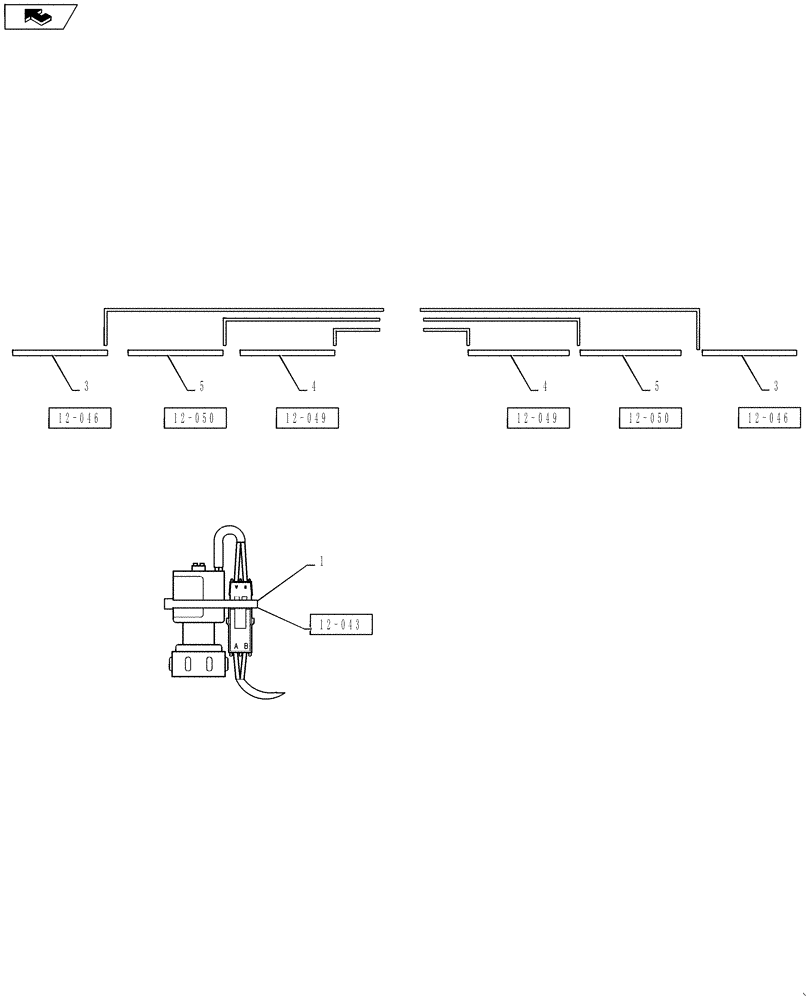

Схема запчастей Case IH 4420 - (12-039) - AIM 90’ X 20" SOL GROUP, WILGER 6 (06) - ELECTRICAL
3
home
5
4
12-043
12-049
12-046
12-050
12-049
12-050
12-046
1
5
3
4

Артикул

Название

Примечание

Количество

1

87271452

SOLENOID

Aim Command, Wilger, 150PSI

54шт.

See Fig. 12-043

1шт.

1

87271452R

REMAN-SOLENOID

4420 PATRIOT SPRAYER, Aim Command, Wilger, 150PSI (8/06-9/11)

54шт.

1

87271452C

CORE-SOLENOID

Return Number

54шт.

2

BN316014

HARNESS

Nozzle Alternator

3шт.

See Fig. 12-051

1шт.

3

87586923

WIRE HARNESS

Aim Command, 5-6 Section, 90' Boom, Outer Section, 9 Nozzle

2шт.

See Fig. 12-046

1шт.

4

BN323118

WIRE HARNESS

Aim Command, 6 Section, 90'/100' Boom, Center Section, 9 Nozzle

2шт.

See Fig. 12-049

1шт.

5

BN323119

WIRE HARNESS

Aim Command, 6 Section, 90'/100' Boom, Inner Sections, 9 Nozzle

2шт.

See Fig. 12-050

1шт.

Выбрано товаров: 12
