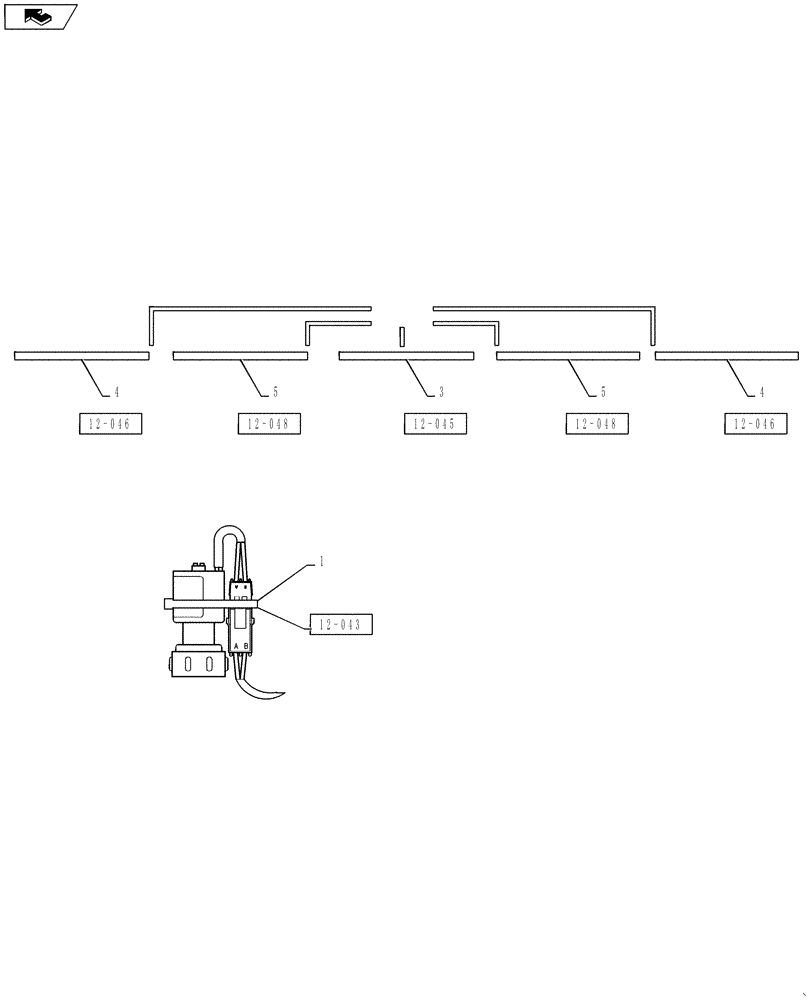

Запчасти Case IH 4420 (12-038) - AIM 90’ X 20" SOL GROUP, WILGER 5 (06) - ELECTRICAL

1

87271452

SOLENOID

Aim Command, Wilger, 150PSI

54шт.

See Fig. 12-043

1шт.

1

87271452R

REMAN-SOLENOID

4420 PATRIOT SPRAYER, Aim Command, Wilger, 150PSI (8/06-9/11)

54шт.

1

87271452C

CORE-SOLENOID

Return Number

54шт.

2

BN316014

HARNESS

Nozzle Alternator

2шт.

See Fig. 12-051

1шт.

3

87586918

WIRE HARNESS

Aim Command, 5 Section, 90' Boom, Center Section, 6 Nozzle

1шт.

See Fig. 12-045

1шт.

4

87586923

WIRE HARNESS

Aim Command, 5-6 Section, 90' Boom, Outer Section, 9 Nozzle

2шт.

See Fig. 12-046

1шт.

5

NSS

NOT SOLD SEPARAT

AIM COMMAND, 15 NOZZLE

2шт.

See Fig. 12-048

1шт.
