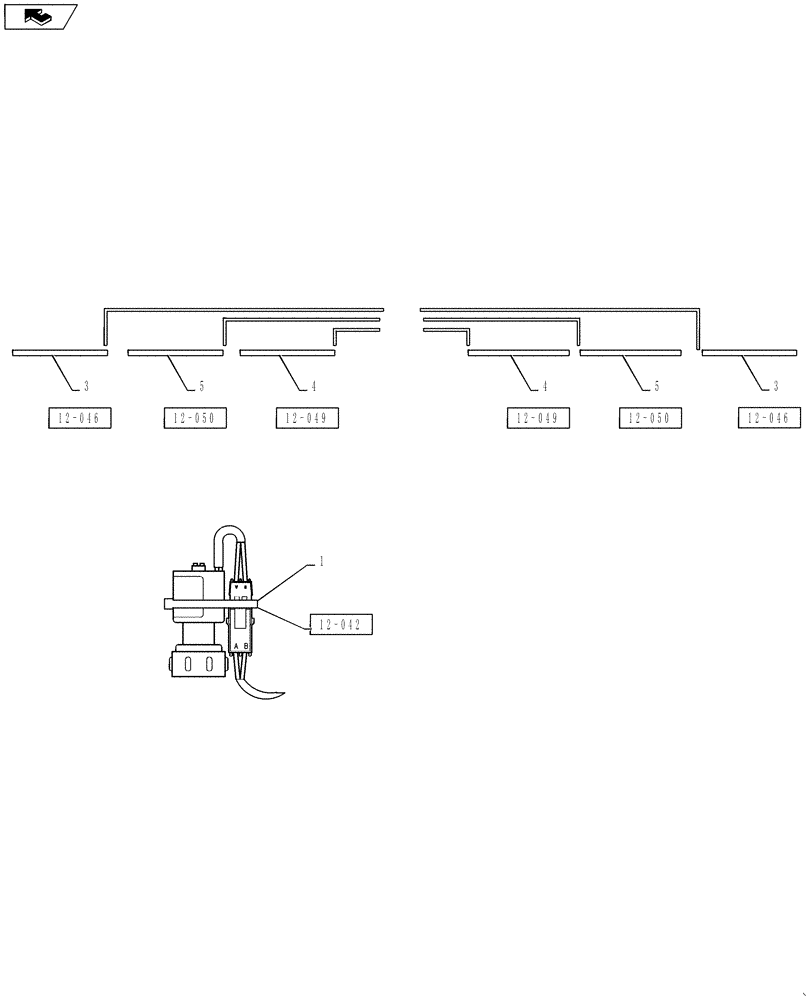

Запчасти Case IH 4420 (12-037) - AIM 90’ X 20" SOL GROUP, ARAG 6 (06) - ELECTRICAL

1

87271451

SOLENOID

Aim Command, Arag, 150PSI

54шт.

See Fig. 12-042

1шт.

2

BN316014

HARNESS

Nozzle Alternator

3шт.

See Fig. 12-051

1шт.

3

87586923

WIRE HARNESS

Aim Command, 5-6 Section, 90' Boom, Outer Section, 9 Nozzle

2шт.

See Fig. 12-046

1шт.

4

BN323118

WIRE HARNESS

Aim Command, 6 Section, 90'/100' Boom, Center Section, 9 Nozzle

2шт.

See Fig. 12-049

1шт.

5

BN323119

WIRE HARNESS

Aim Command, 6 Section, 90'/100' Boom, Inner Sections, 9 Nozzle

2шт.

See Fig. 12-050

1шт.
