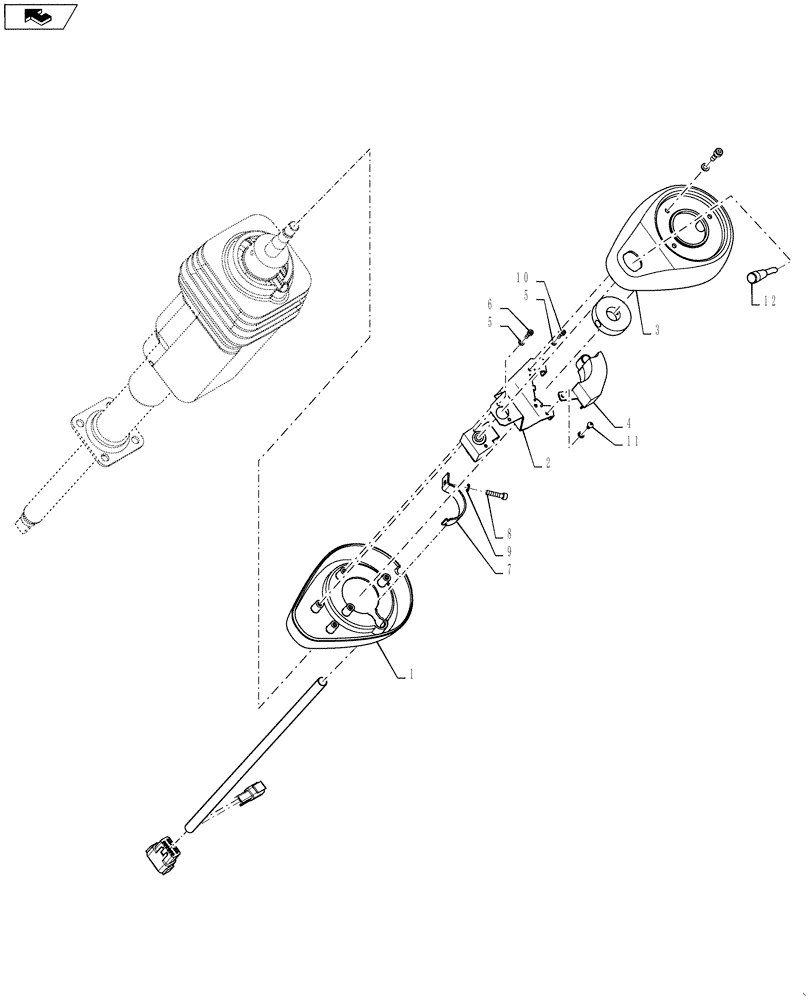

Запчасти Case IH 4420 (01-011) - POD ASSEMBLY, SELF CANCEL TURN Cab Interior

1

253396A2

HOUSING

turn signal, lower

1шт.

2

253397A2

SUPPORT

bracket, turn signal

1шт.

3

253395A1

HOUSING

turn signal, upper

1шт.

4

280529A1

SENSOR

With Harness (Use if 12 Pin Connector has 6 Wires)

1шт.

4

87538885

SENSOR

With Sensor (Use if 12 Pin Connector has 9 Wires)

1шт.

5

892-11004

LOCK WASHER,M4

4шт.

6

87016455

SCREW,Pan, M4 x 6mm

2шт.

7

144628A1

SUPPORT

CLAMP, F/N/R CONTROL POD

1шт.

8

87016469

HEX SOC SCREW,M5 x 25mm, Cl 8.8

1шт.

9

86639308

LOCK WASHER,Int Tooth, M5

2шт.

10

87343623

HEX SOC SCREW,M4 x 12mm, Cl 8.8, Full Thd

Hex Socket, M4 x 12 CL 8.8 DOR

5шт.

11

760-14413

SELF-TAP SCREW,Pan Hd, M4.8 x 13

1шт.

12

284777A1

SWITCH

universal with dipping, self cancel

1шт.
