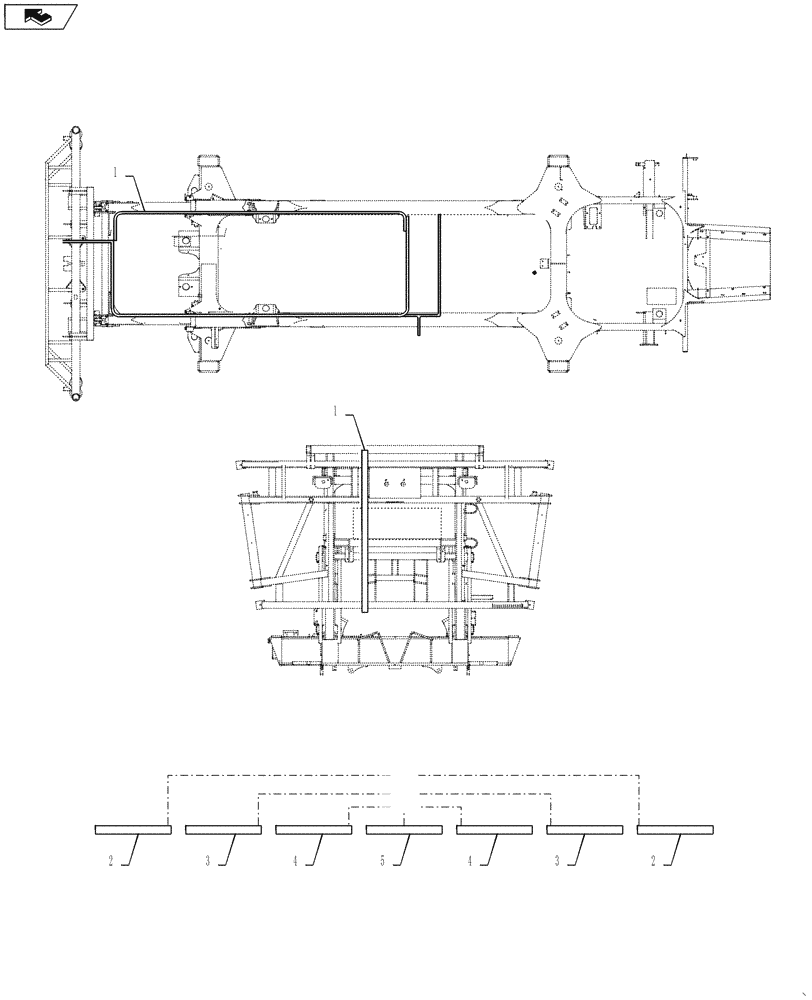

Запчасти Case IH 4420 (12-016) - HARNESS GROUP, 7 SECTION, 120’ (06) - ELECTRICAL

1

87627648

HARNESS

AIM CMD, 7 SECTS

1шт.

2

87627642

HARNESS

Aim Command Harness, Section 1 And 7, Outer Section, 120' Boom

2шт.

3

87627643

HARNESS

Aim Command Harness, Section 2 And 6, Mid Section, 120' Boom

2шт.

4

87627644

HARNESS

Aim Command Harness, Section 3 And 5, Inner Section, 120' Boom

2шт.

5

87627645

HARNESS

Aim Command Harness, Section 4, Center Section, 120' Boom

1шт.

6

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

2шт.

7

353308

NUT,M6 x 1.0, Cl 8

2шт.

8

BN316014

HARNESS

HARNESS, NOZZLE ALTERNATOR, SEE FIG. 12-051

3шт.

9

BN570007

STRAP

Black Only .12-4.0 Band

1шт.
