Запчасти Case IH 4420 (12-003) - MODULE, CAB MAIN (06) - ELECTRICAL

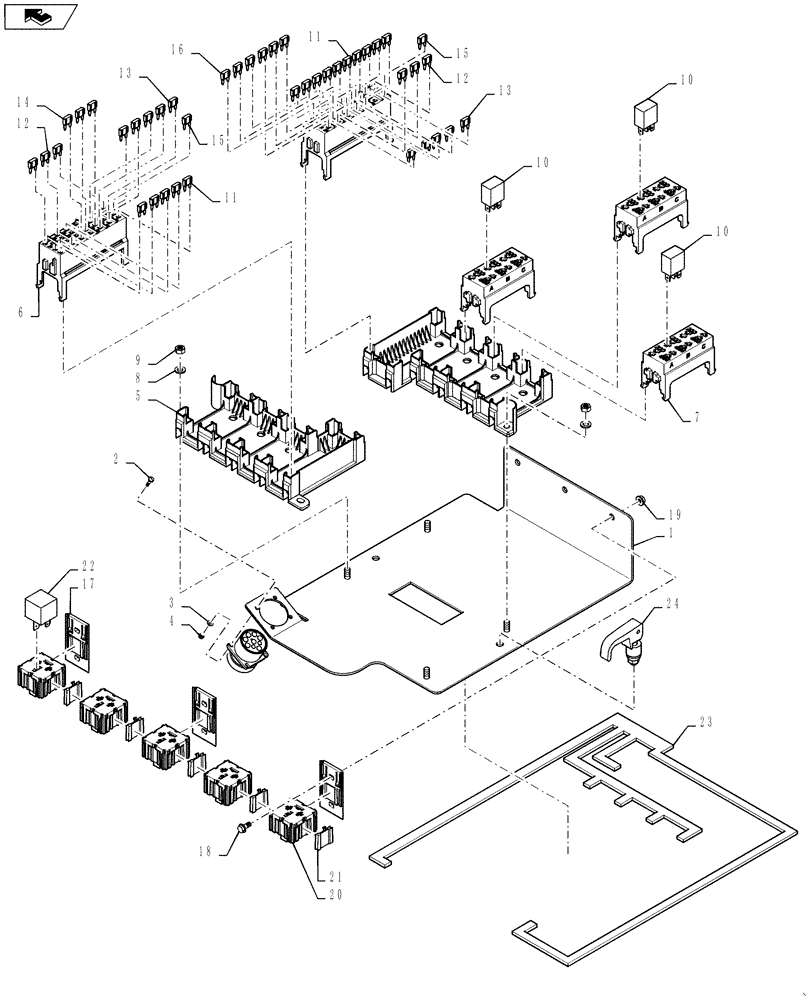

Схема запчастей Case IH 4420 - (12-003) - MODULE, CAB MAIN (06) - ELECTRICAL
15
7
10
11
5
13
20
10
12
home
12
23
4
15
22
6
17
19
24
16
18
14
2
13
9
3
11
21
8
10
1

Артикул

Название

Примечание

Количество

0

87719915

MODULE

Late Production W / 16 Pin Connector at BH 11

1шт.

1

87335614

BASE PLATE

Electrical, Surveyor Cab

1шт.

2

86599775

SCREW,M3 x 0.5 x 14.4mm OAL, Cl 4.8

4шт.

3

86639310

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

4шт.

4

824-1403

NUT,M3, Cl 5

4шт.

5

191135A1

BASE

Packard P/N 12110041

2шт.

6

144421A1

CONNECTING BLOCK

Module, Packard 28-Way Minifuse

2шт.

7

144417A1

CONNECTING BLOCK

Module, Packard 6-Way Micro Relay

3шт.

8

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

4шт.

9

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

4шт.

10

87414866

RELAY,12V, 20A

Bosch M30 332 201 107

17шт.

11

121412A1

FUSE,10A, Mini, Red

16шт.

12

121410A1

FUSE,5A, Mini, Tan

7шт.

13

121413A1

FUSE,15A, Mini, Blue

10шт.

14

121415A1

FUSE,25A, Mini, Clear

3шт.

15

121414A1

FUSE,20A, Mini, Yellow

2шт.

16

121416A1

FUSE,30A, Mini, Green

6шт.

17

367147A1

BRACKET

mounting (Dill #59205)

3шт.

18

841-4512

SCREW,Hex Washer , M5 x 12mm, Cl 4.8

3шт.

19

825-5145

NUT,M5, Flg Ser

3шт.

20

367145A1

ELEC CONNECTOR,Female, 4 Pin

grey terminal (Dill #59184)

3шт.

21

367146A1

WEDGE

lock, red (Dill #59011)

5шт.

22

368459A1

RELAY,12V, 70A

70 amp power, Hella #66132

4шт.

23

NSS

NOT SOLD SEPARAT

HARNESS, 4WD CAB MAIN ELECTRICAL

1шт.

24

342478A1

LATCH

Swell

2шт.

Выбрано товаров: 25
