(12-001[02]) - FRAME ELECTRICAL GROUP FROM 01/2009

Запчасти Case IH 4420 (12-001[02]) - FRAME ELECTRICAL GROUP FROM 01/2009 (06) - ELECTRICAL

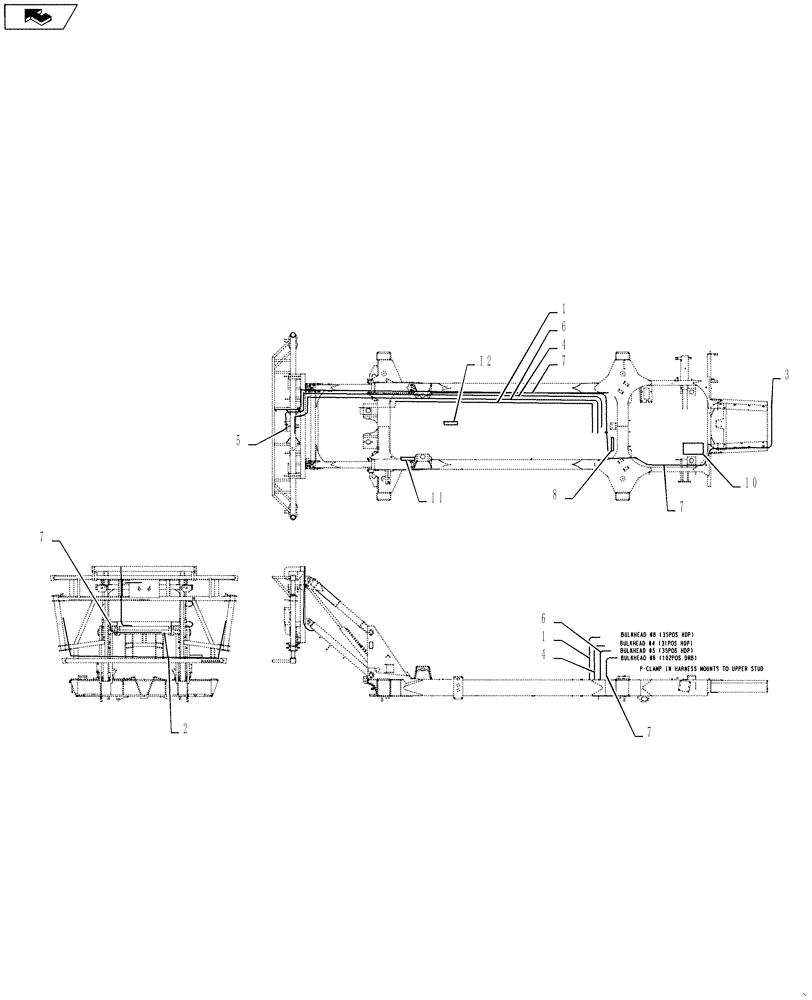

Схема запчастей Case IH 4420 - (12-001[02]) - FRAME ELECTRICAL GROUP FROM 01/2009 (06) - ELECTRICAL
7
3
4
4
7
8
home
10
6
1
2
6
7
11
1
7
5
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87271835

WIRE HARNESS

778E Electric Engine

1шт.

2

84134650

HARNESS

Extension, 120' Rear Lights

1шт.

3

87756561

WIRE HARNESS

Hood, Headlights and Worklights

1шт.

4

87474695

HARNESS

Hydraulic Control, Frame

1шт.

5

87474696

HARNESS

Hydraulic Control, Center Section, Standard

1шт.

6

87722110

HARNESS

product control

1шт.

7

87741864

HARNESS

FRAME

1шт.

8

87271934

DECAL

Bulkhead Callout

1шт.

9

NS

NOT SERVICED

Harness Mounting Group

1шт.

See Fig. 12-014

1шт.

10

BN322488

SENSOR

Speed

1шт.

See Fig. 04-052

1шт.

10

87733890R

REMAN-SENSOR

4420 PATRIOT SPRAYER, Speed (8/06-9/11), Reman for New PN BN322488

1шт.

10

87733890C

CORE-SENSOR

Return Number

1шт.

11

87751551

CIRCUIT BREAKER GROUP

1шт.

See Fig. 12-068

1шт.

12

87484720

CNTRL GROUP CAN PACKAGE

1шт.
