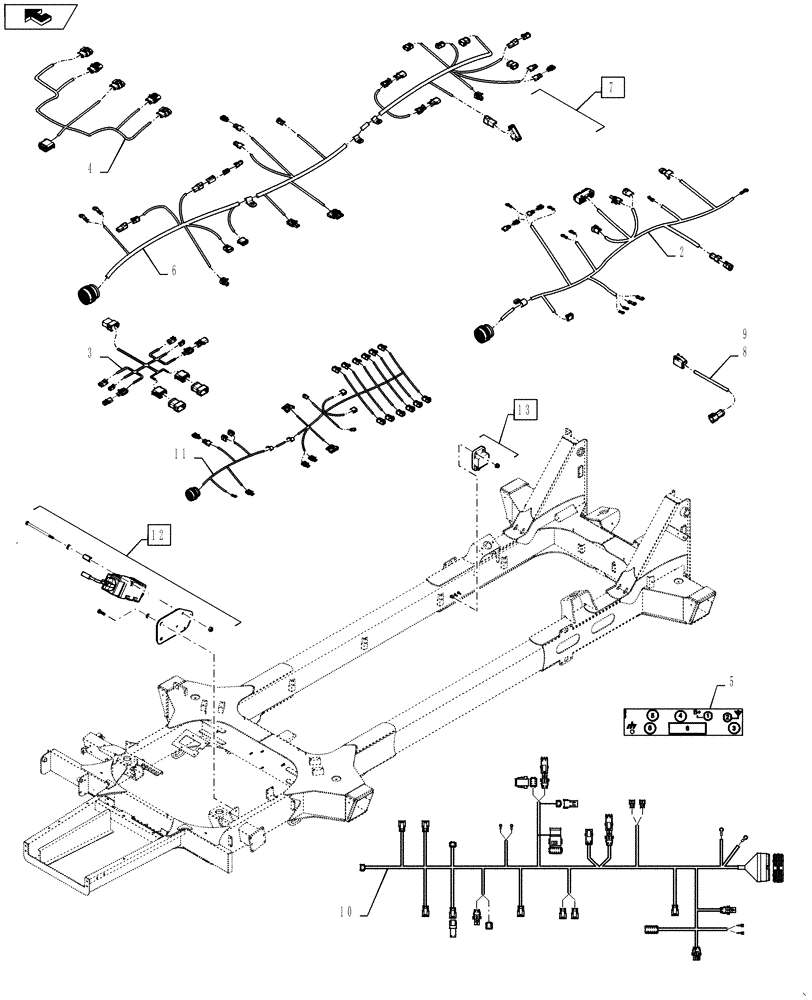

Запчасти Case IH 4420 (12-001[01]) - FRAME ELECTRICAL GROUP BEFORE 01/2009 (06) - ELECTRICAL

1

NS

NOT SERVICED

Harness Mounting Group

1шт.

See Fig. 12-014

1шт.

2

87271835

WIRE HARNESS

778E Electric Engine

1шт.

See Fig. 12-018

1шт.

3

84134650

HARNESS

Extension, 120' Rear Lights

1шт.

See Fig. 12-024

1шт.

4

87756561

WIRE HARNESS

Hood, Headlights and Worklights

1шт.

See Fig. 12-021

1шт.

5

87271934

DECAL

Bulkhead Callout

1шт.

6

87630208

WIRE HARNESS

PRODUCT CONTROL

1шт.

See Fig. 12-019

1шт.

7

NS

NOT SERVICED

PWR, BOOM SHUT-OFF

1шт.

Associated Part of Harness, Product Control, P/N 87630208

1шт.

See Fig. 12-019

1шт.

8

87267294

WIRE HARNESS

Terminator, Liquid

1шт.

Associated Part of Harness, Product Control, P/N 87630208

1шт.

9

BN303611

TERMINAL CONNECTOR

TERMINATOR

1шт.

Associated Part of Harness, Product Control, P/N 87630208

1шт.

10

87546452

HARNESS

FRAME

1шт.

See Fig. 12-022

1шт.

11

87279954

HYD CONTROL

1шт.

See Fig. 12-020

1шт.

12

BN322488

SENSOR

Speed

1шт.

See Fig. 04-050

1шт.

12

87733890R

REMAN-SENSOR

4420 PATRIOT SPRAYER, Speed (8/06-9/11), Reman for New PN BN322488

1шт.

12

87733890C

CORE-SENSOR

Return Number

1шт.

13

87751551

CIRCUIT, GROUP

1шт.

See Fig. 12-068

1шт.
