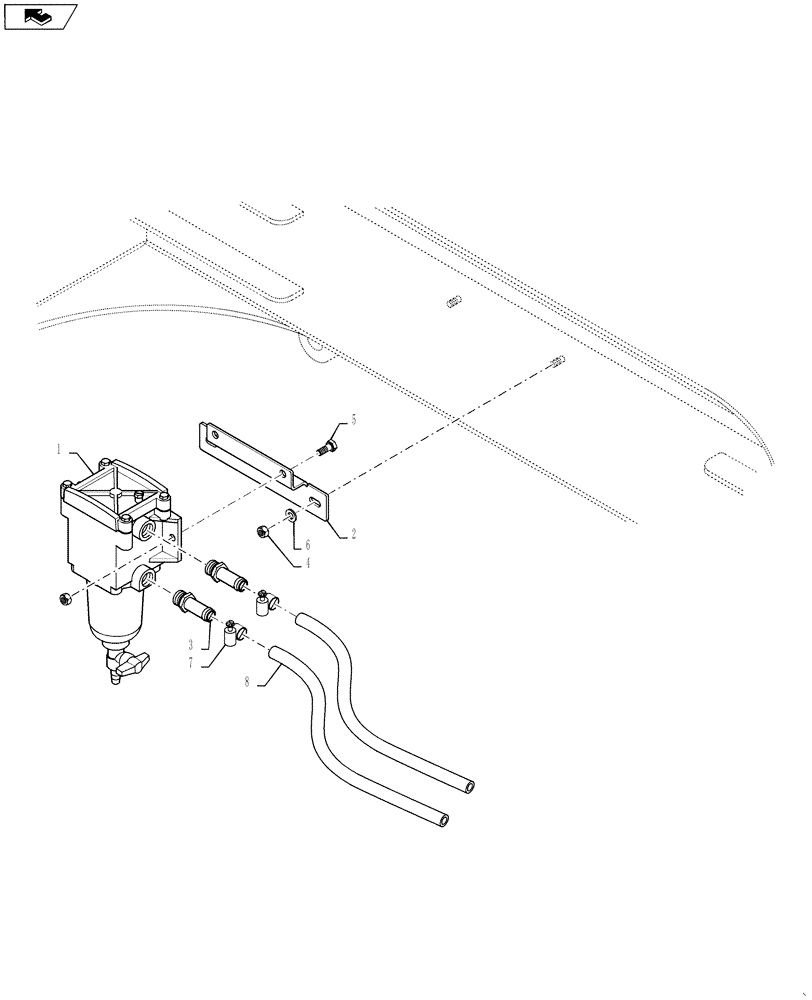

Запчасти Case IH 4420 (11-083[01]) - SEPARATOR, FILTER, KIT (01) - ENGINE

1

336429A2

FUEL FILTER

Strainer, See 11-083 [02] For Service Parts

1шт.

2

87611144

MOUNT

SEPARATOR FILTER

1шт.

3

217-395

FITTING,5/8" Hose Barb x 3/4" - 16 Male ORB

2шт.

4

9991588

NUT,M8 x 1.25, Cl 8

4шт.

5

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

6

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

2шт.

7

9706921

HOSE CLAMP,12.7mm - 35mm

2шт.

8

87611145

FUEL HOSE,15.88 mm ID

1шт.
