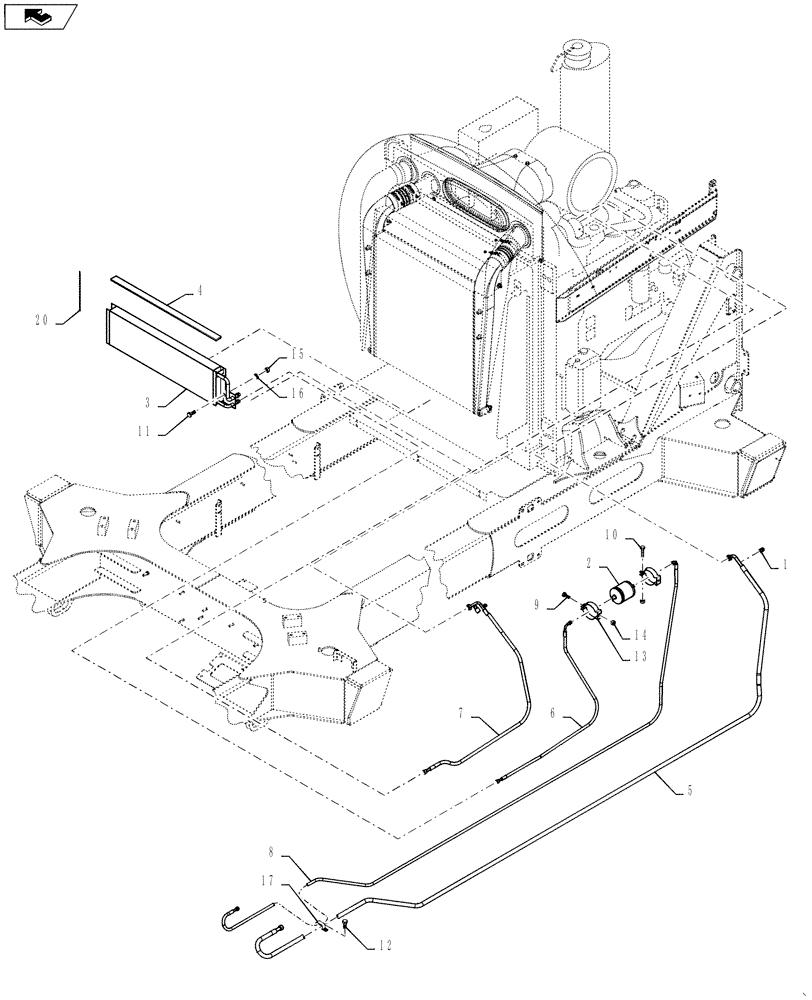

Запчасти Case IH 4420 (03-048) - A/C GROUP (01) - ENGINE

1

87000227

SWITCH, A/C HIGH PRE

High N.C.

1шт.

2

295006A1

RECEIVER-DRYER

horizontal mount

1шт.

3

BN323863

CONDENSER

A/C

1шт.

4

BN324238

FOAM INSULATION

SEAL

1шт.

5

BN325737

HOSE

ASSY, CAB TO DRYER

1шт.

6

BN325738

HOSE

ASSY, DRYER TO COND

1шт.

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

For 5, 6

3шт.

7

BN325739

HOSE

ASSY, COND. TO COMP.

1шт.

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

For 7

1шт.

8

BN325740

HOSE

ASSY, COMP. TO CAB

1шт.

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

For 7, 8

3шт.

9

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

10

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

2шт.

11

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

12

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

13

70-6589T1

SUPPORT

Bracket, Recovery Dryer

2шт.

14

353308

NUT,M6 x 1.0, Cl 8

4шт.

15

86528579

NUT,M8 x 1.25

1шт.

16

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

17

R54363

CLAMP

double, DIA. 23.8

2шт.

18

331-578

FLUID

refrigerant, 1 Kg, HFC-134A

1шт.

20

BN309265

CABLE

TIE

1шт.
