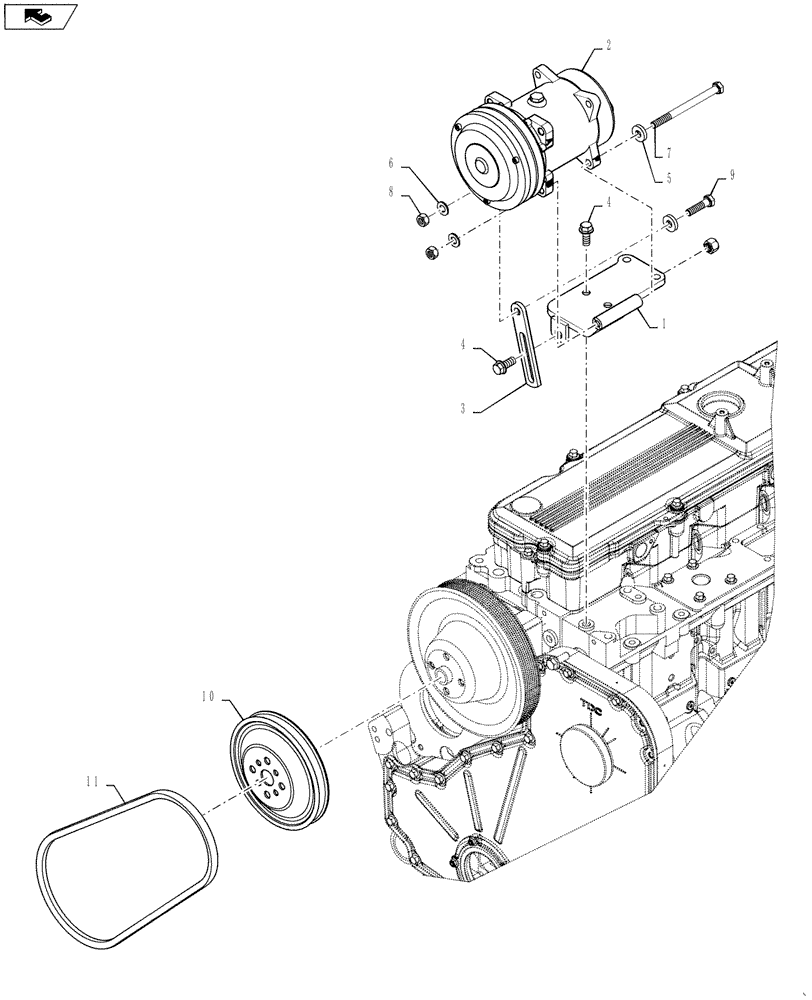

Запчасти Case IH 4420 (03-047) - COMPRESSOR GROUP,A/C (01) - ENGINE

1

87272605

MOUNTING PARTS

A/C COMPRESSOR

1шт.

2

86993462

AIRCOND. COMPRESSOR

12V Double Groove

1шт.

2

86993462GV

AIRCOND. COMPRESSOR

Value

1шт.

86993462R

REMAN-COMPRESSOR

4420 (8/06-9/11)

1шт.

86993462C

CORE-COMPRESSOR

Return Number

1шт.

2

48017123R

REMAN-A/C COMP KIT

Reman AC Compressor Kit

1шт.

48017123C

REMAN-A/C COMP KIT

Return Number

1шт.

2a

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 id x 1/16

1шт.

Associated Part of Compressor, P/N 86993462

1шт.

2b

135324A2

CLUTCH

EC- ASSY, AC COM

1шт.

Associated Part of Compressor, P/N 86993462

1шт.

3

84716C1

SUPPORT

Strap, Adjusting Compressor

1шт.

4

905-10025

BOLT,Hex Flg, M10 x 25mm

5шт.

5

3120737R1

WASHER,10.8mm ID x 25mm OD x 5mm Thk

10.8 x 25 x 5 mm

2шт.

6

140017

WASHER,M10 x 20mm OD x 2mm Thk

2шт.

7

86980413

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

1шт.

8

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

9

86980403

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

10

J919624

PULLEY

Compressor Drive, Years: -01-SEP-09

1шт.

10

84167711

PULLEY,179.56mm OD

Compressor Drive, Start Year: 01-SEP-09

1шт.

11

1250587C1

V-BELT,0.50" W

A/C

1шт.
