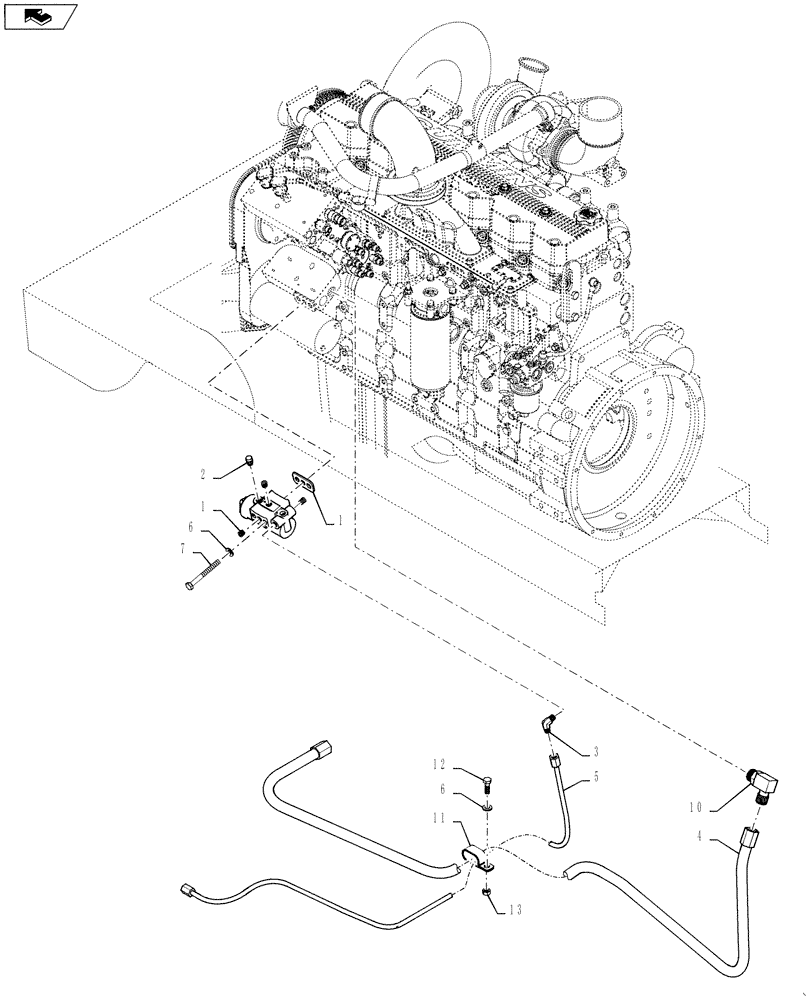

Запчасти Case IH 4420 (03-044) - GOVERNOR GROUP,AIR COMPRESSOR (01) - ENGINE

1

BN2290733

GOVERNOR

Air, 275491

1шт.

2

BN2293227

BREATHER

301370 1/8" NPT

1шт.

3

BN2290148

ELBOW

4MJ - 2MP 90º

1шт.

3a

BN312106

FITTING

2024-2-6

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

4

87267785

HOSE,12.7mm ID x 1676.4mm L

10 x 66"

1шт.

5

BN314859

HOSE

ASSY, -4 X 60

1шт.

5a

87267786

HOSE

6 x 60"

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

6

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

7

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

2шт.

10

BN67865

ELBOW

90°, #10 JICX, #12 O-Ring

1шт.

11

L101181

CLAMP,0.75" D Clamping pipes x 2

DOUBLE

1шт.

12

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

13

86528579

NUT,M8 x 1.25

1шт.
