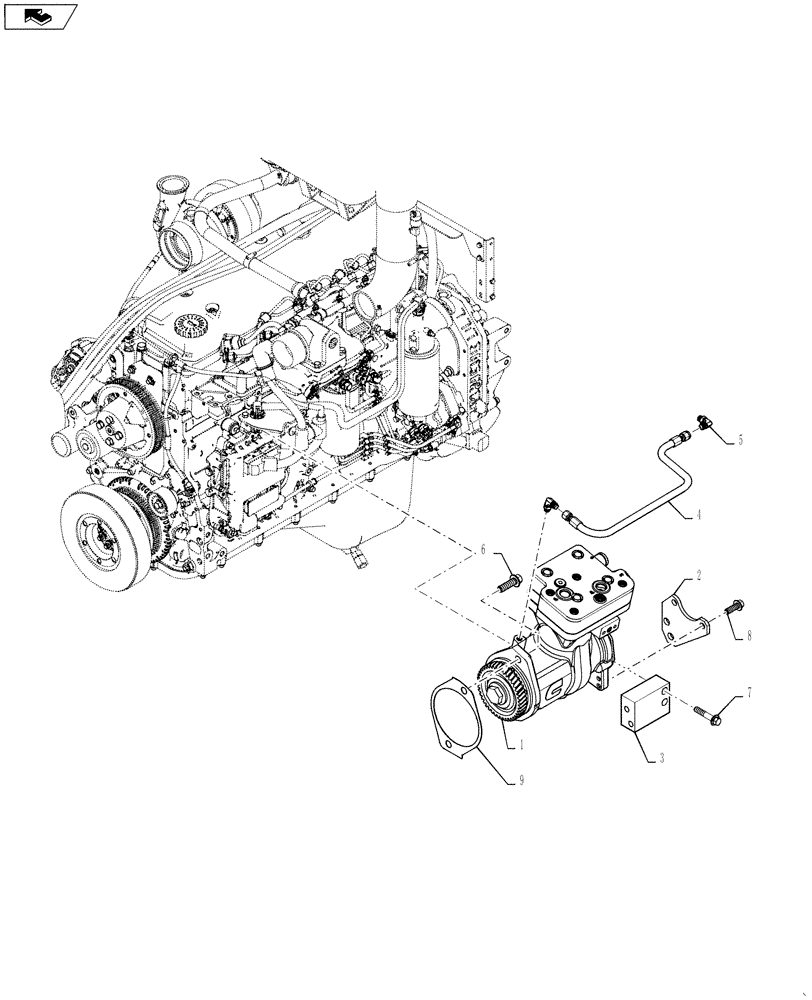

Запчасти Case IH 4420 (03-043) - AIR COMPRESSOR GROUP (01) - ENGINE

1

84157546

AIR COMPRESSOR

18.7 CFM

1шт.

2

87573590

SUPPORT

Air Compressor

1шт.

3

87573589

SPACER

compressor mounting

1шт.

4

J906747

HOSE,6.35mm ID x 508mm L

Flexible

1шт.

5

J945212

ELBOW

plain union

2шт.

6

J920447

FLANGE BOLT,M12 x 40mm, Cl 10.9

Flange, M12 x 40, 10.9

2шт.

7

J900634

FLANGE BOLT,Hvy Hex, M10 x 50mm, Cl 10.9

2шт.

8

854-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 10.9

4шт.

9

J940245

GASKET,1.27mm Thk

hydraulic pump

1шт.

10

L18396DS

LOCTITE

primer, #770

1шт.

11

BN1243001

LOCTITE

243-31 Removable

1шт.
