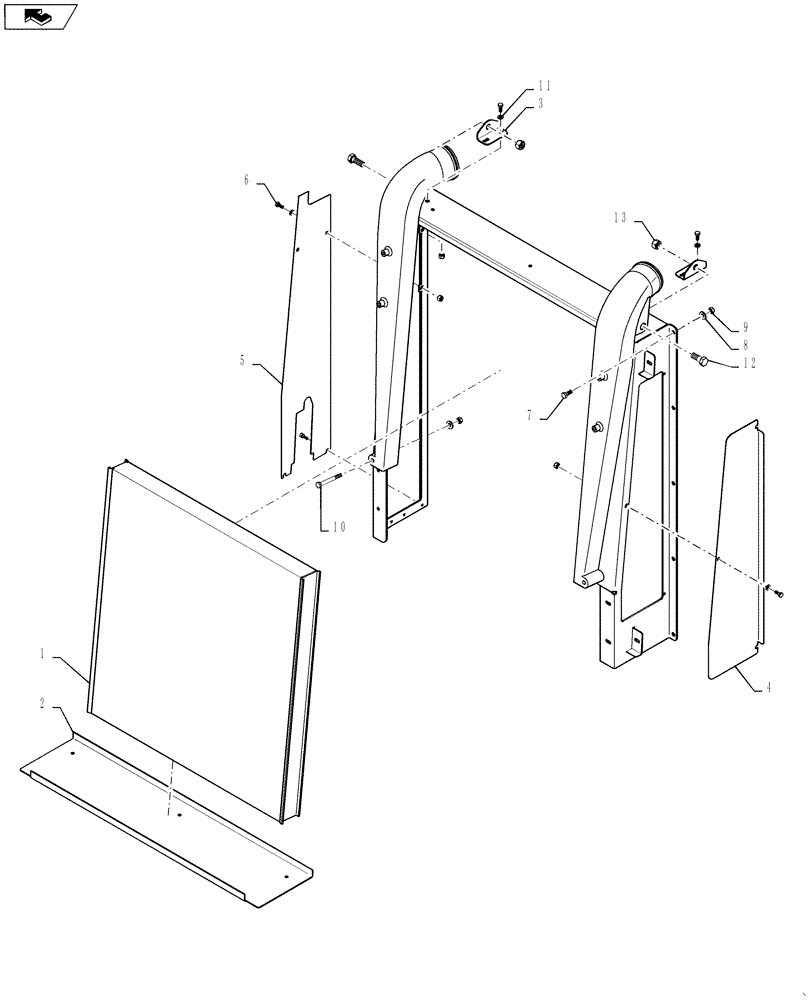

Запчасти Case IH 4420 (03-037) - MOUNT GROUP,CAC (01) - ENGINE

1

437398A1

AFTERCOOLER

CHARGE AIR, TURB

1шт.

2

87267476

MOUNTING PLATE

Frame, Cooler

1шт.

3

BN324237

BRACKET

Cac

2шт.

4

87267574

DOOR

LH ACCESS

1шт.

5

87384510

COVER

ACCESS HOLE, RH

1шт.

6

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

7шт.

7

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

10шт.

8

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

12шт.

9

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

12шт.

10

86980409

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

4шт.

11

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

7шт.

12

86980444

BOLT,Hex, M16 - 2 x 40mm, Cl 8.8, DOR

2шт.

13

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

2шт.
