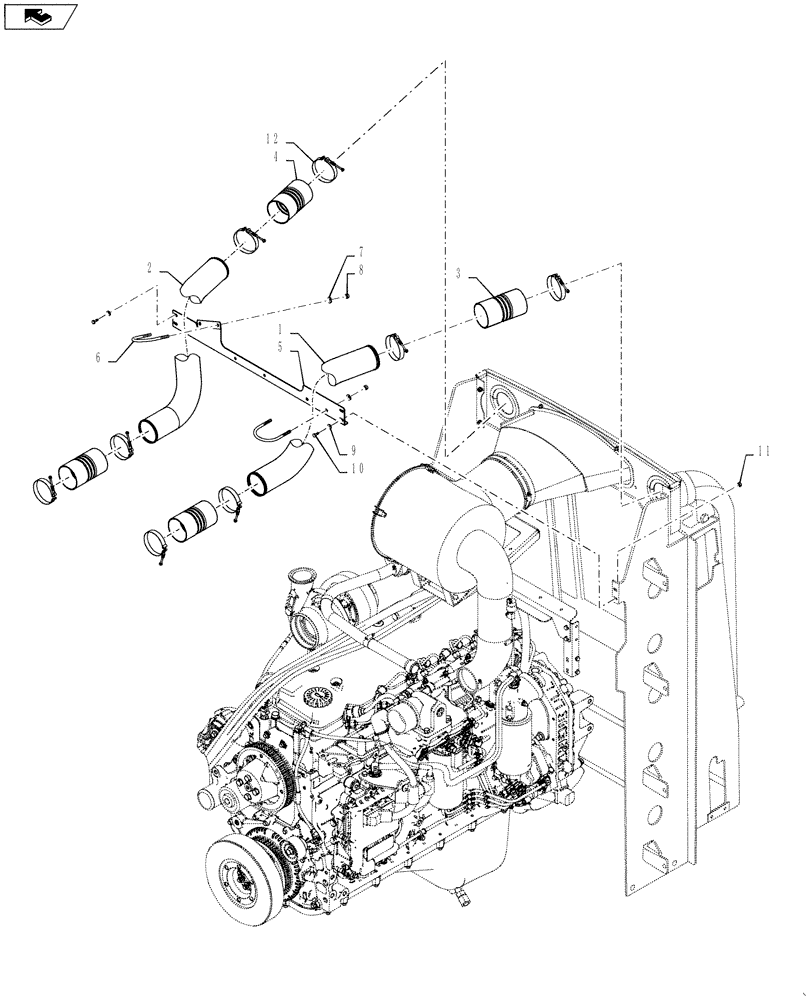

Запчасти Case IH 4420 (03-036) - TUBES GROUP,AIR INTAKE (01) - ENGINE

1

BN323865

TUBE

CAC, IN

1шт.

2

87271816

TUBE,4.00" OD

CAC OUT

1шт.

3

251400A1

BELLOWS

CAC

2шт.

4

87306140

BELLOWS

CAC

2шт.

5

87267788

SUPPORT

CAC TUBES

1шт.

6

BN324240

U-BOLT

ROUND

2шт.

7

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

8

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

9

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

4шт.

10

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

11

9991588

NUT,M8 x 1.25, Cl 8

4шт.

12

BN300760

CLAMP

Constant Torque, 4.25"

8шт.
