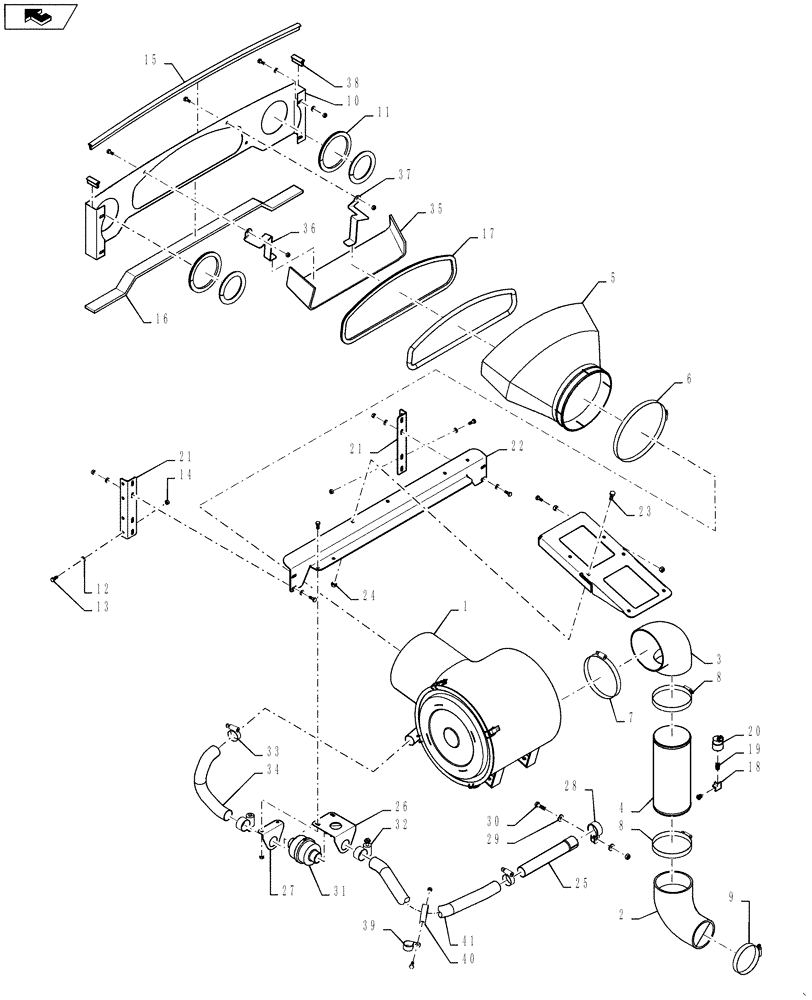

Запчасти Case IH 4420 (03-034) - MOUNT GROUP,AIR CLEANER (01) - ENGINE

1

363786A1

AIR CLEANER

assembly

1шт.

See Fig. 03-035

1шт.

2

BN306335

ELBOW

90°, 5 x 4

1шт.

3

BN305658

ELBOW

REDUCER 6" X 5" X90

1шт.

4

BN324221

TUBE

AIR INTAKE

1шт.

5

BN325298

DUCT

AIR FILTER

1шт.

6

214-31160

HOSE CLAMP,9-1/4" - 10-1/8", HD Worm

1шт.

7

214-32104

HOSE CLAMP,5-3/4" - 6-5/8", HD Worm, W/ Liner

1шт.

8

214-3288

HOSE CLAMP,4-3/4" - 5-5/8", HD Worm, W/ Liner

2шт.

9

86639564

HOSE CLAMP,3.75/4.625 HD Worm, W/liner

1шт.

10

87265502

BAFFLE

CAC TUBES

1шт.

11

87265504

SEAL

CLIP ON

2шт.

12

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

20шт.

13

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

18шт.

14

9991588

NUT,M8 x 1.25, Cl 8

16шт.

15

BN324814

SEAL

CLIP ON

1шт.

16

BN324815

FOAM INSULATION

SEAL

1шт.

17

87265503

SEAL

CLIP ON

1шт.

18

217-1050

90 ELBOW,1/8" - 27 NPTF Female

1шт.

19

D36264

FITTING

ADAPTER AIR CLEA

1шт.

20

279492A1

RESTRICTION SWITCH

AIR RESTRICTION

1шт.

21

BN324247

MOUNTING PLATE

AIR CLEANER SPPRT

2шт.

22

BN325393

SUPPORT

AIR CLEANER

1шт.

23

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

24

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

6шт.

25

344304A1

TUBE,38.9 mm ID, 38.1 mm OD, 254 mm Length

ASPIRATOR

1шт.

26

344302A1

MOUNTING PLATE

ASPIRATOR VALVE

1шт.

27

344303A1

MOUNTING PLATE

ASPIRATOR VALVE

1шт.

28

334985A1

CLAMP

EXHAUST

1шт.

29

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

30

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

31

307123A1

VALVE

ASPIRATOR EXHAUST

1шт.

32

214-1520

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm, W/ Liner

2шт.

33

86634186

HOSE CLAMP,32mm - 54mm

2шт.

34

87265505

HOSE

1.5 (L9) X 15”

1шт.

35

87265501

FOAM INSULATION

Reflective

1шт.

36

87265735

SUPPORT

AIR DUCT, LH

1шт.

37

87265736

SUPPORT

AIR DUCT, RH

1шт.

38

87265507

SEAL

CLIP ON

2шт.

39

515-23302

CLAMP,1 3/16", Insul, 3/8" Bolt

1шт.

40

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

1шт.

41

87265737

HOSE

1.5 (L9) X 27"

1шт.

42

BN54039

ADHESIVE

Spray 18 oz

1шт.
