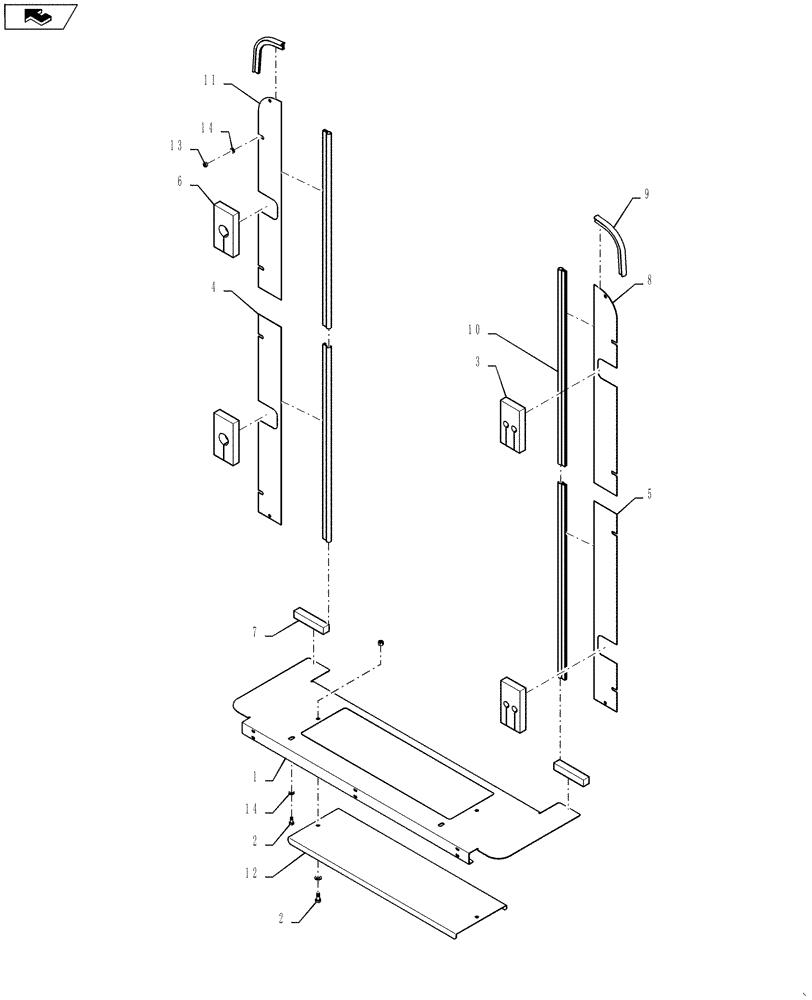

Запчасти Case IH 4420 (03-033) - RADIATOR GROUP,BAFFLING (01) - ENGINE

1

87267789

BAFFLE

Lower Radiator

1шт.

2

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

3

87270178

SEAL

FOAM

2шт.

4

87384519

BAFFLE

BAFFLE, Radiator Sides

1шт.

5

87270181

BAFFLE

Radiator Sides

1шт.

6

87270179

SEAL

FOAM

2шт.

7

BN324105

FOAM INSULATION

SEAL

2шт.

8

87270180

BAFFLE

RADIATOR, SIDES

1шт.

9

BN324816

SEAL

CLIP ON

2шт.

10

87270182

SEAL

CLIP ON

4шт.

11

87384522

BAFFLE

RADIATOR, SIDES

1шт.

12

86986384

COVER

LOWER RAD ACCESS

1шт.

13

9991588

NUT,M8 x 1.25, Cl 8

8шт.

14

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

12шт.
