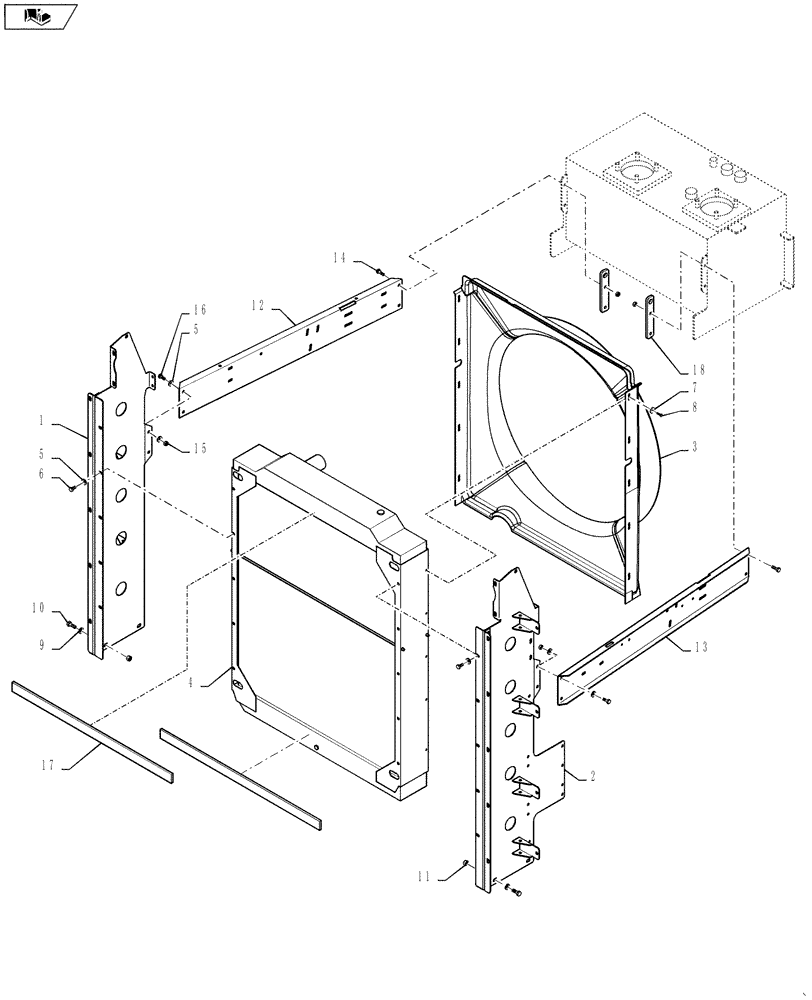

Запчасти Case IH 4420 (03-032) - RADIATOR MOUNT AND SHROUD (01) - ENGINE

1

87268877

MOUNTING PLATE

Radiator, RH

1шт.

2

87268878

MOUNTING PLATE

Radiator, LH

1шт.

3

303464A2

DEFLECTOR

SHROUD, FAN

1шт.

4

87266225

RADIATOR

778D, 6.5 FPI

1шт.

5

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

18шт.

6

86980399

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10-1.5 X 20, HH, 8.8, DOR

10шт.

7

87529304

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

6.6 x 25 x 1.6 mm

10шт.

8

120100

BOLT,M6 x 20mm, Cl 8.8

10шт.

9

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

10

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

11

100038

NUT,M12 x 1.75, Cl 8

4шт.

12

87268913

SUPPORT

CHANNEL, RH

1шт.

13

87536156

SUPPORT

CHANNEL, LH

1шт.

14

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

15

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

16

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

17

BN324818

FOAM INSULATION

SEAL

2шт.

18

47402225

LUG

Lifting

2шт.
