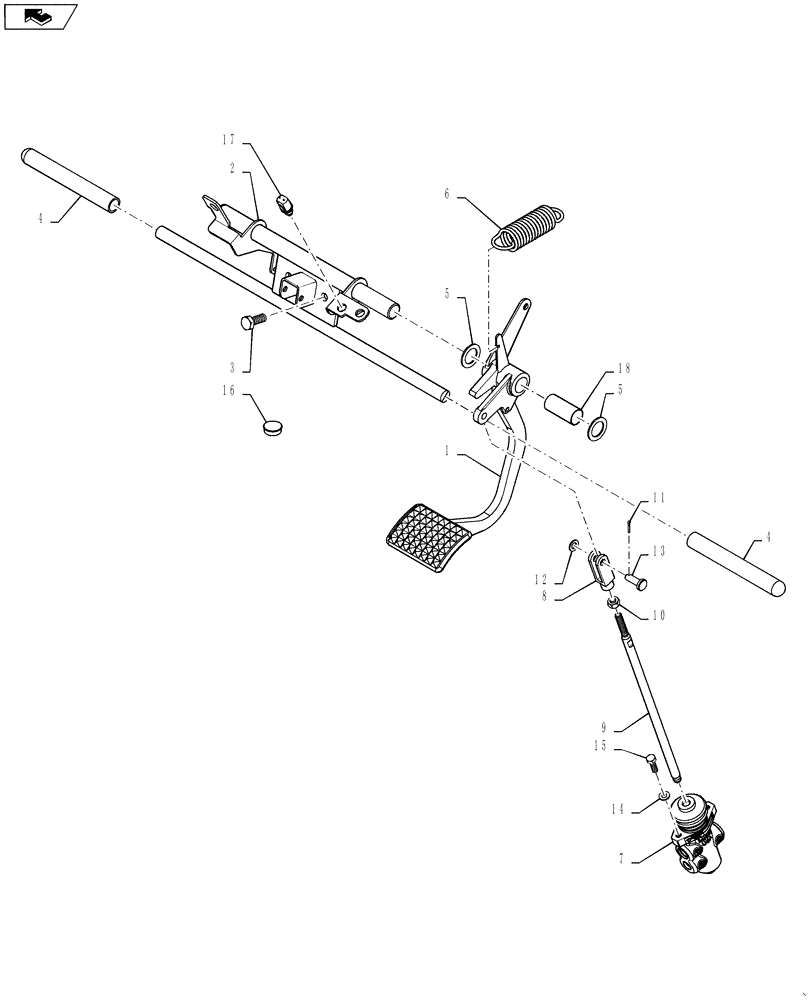

Запчасти Case IH 4420 (01-008) - BRAKE CONTROL Cab Interior

1

222462A2

PEDAL

Control

1шт.

2

370247A3

SUPPORT

pedal

1шт.

3

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

2шт.

4

321961A1

MOLDING

RUBBER

2шт.

5

281093A1

WASHER,Flat, 26.5mm x 38.1mm x 2mm

FLAT

2шт.

6

278210A1

SPRING,Extension, 38.1mm OD x 114.3mm L

EXTENSION

1шт.

7

380930A1

VALVE

brake

1шт.

8

713-1110

CLEVIS

Regular Adjustable M10 X 40

1шт.

9

380955A1

ROD

BRAKE, THREADED

1шт.

10

86500689

NUT,M10 x 1.5, Cl 10

1шт.

11

86639108

CLEVIS PIN,10mm OD x 30mm L

1шт.

12

86625251

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

13

733-2512

COTTER PIN,M2.5 x 12

1шт.

14

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

15

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

16

86625130

PLUG,Dome, 1.250" hole, Nylon

1шт.

17

279265A2

SWITCH

differential lock brake

1шт.

18

281893A1

BEARING

PEDAL

1шт.
