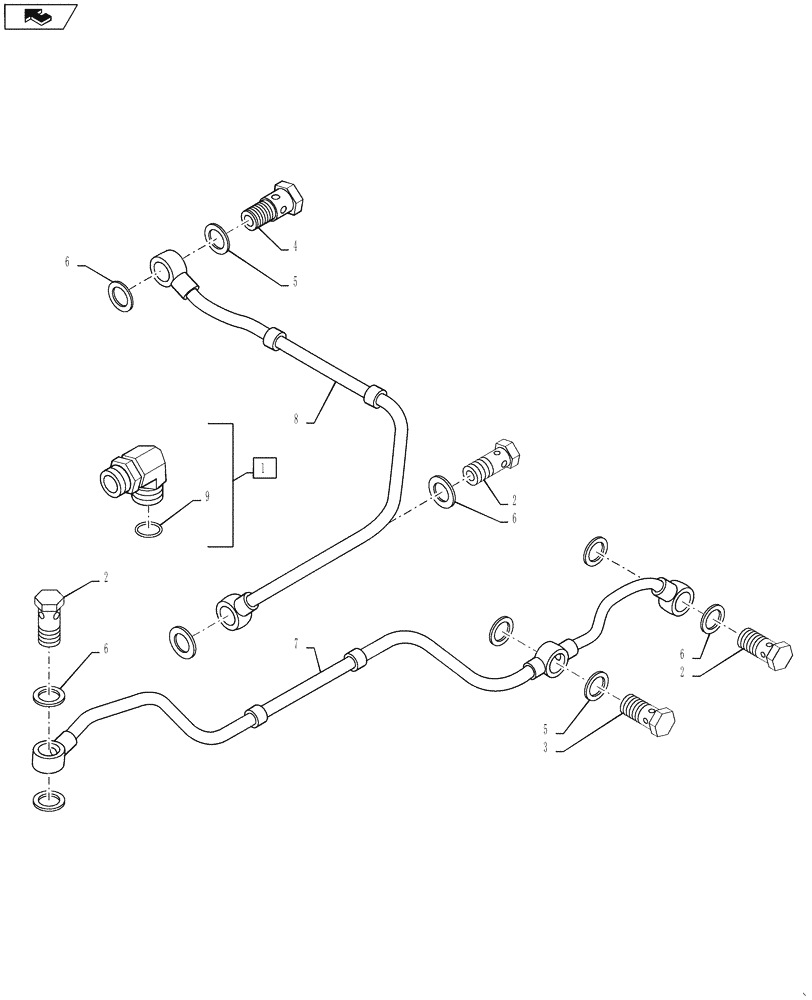

Запчасти Case IH 4420 (03-026) - FUEL DRAIN (01) - ENGINE

1

J3062138

(INCUDES REF. 9)

1шт.

2

J903035

BANJO BOLT

3шт.

3

J924725

BANJO BOLT,M14 x 1.5 x 26mm

1шт.

4

87346562

CHECK VALVE,M12 x 1.5

1шт.

5

87417767

SEALING WASHER,13.67mm ID x 22.35mm OD x 1.27mm Thk

Ring, Packing

3шт.

6

87346600

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

7шт.

7

84170799

FUEL TUBE

DRAIN

1шт.

8

87515950

FUEL TUBE,183.6, 92 mm L

fuel drain

1шт.

9

237-8008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

1шт.
