Запчасти Case IH 4420 (03-022) - GASKET KIT-VALVE GRIND (01) - ENGINE

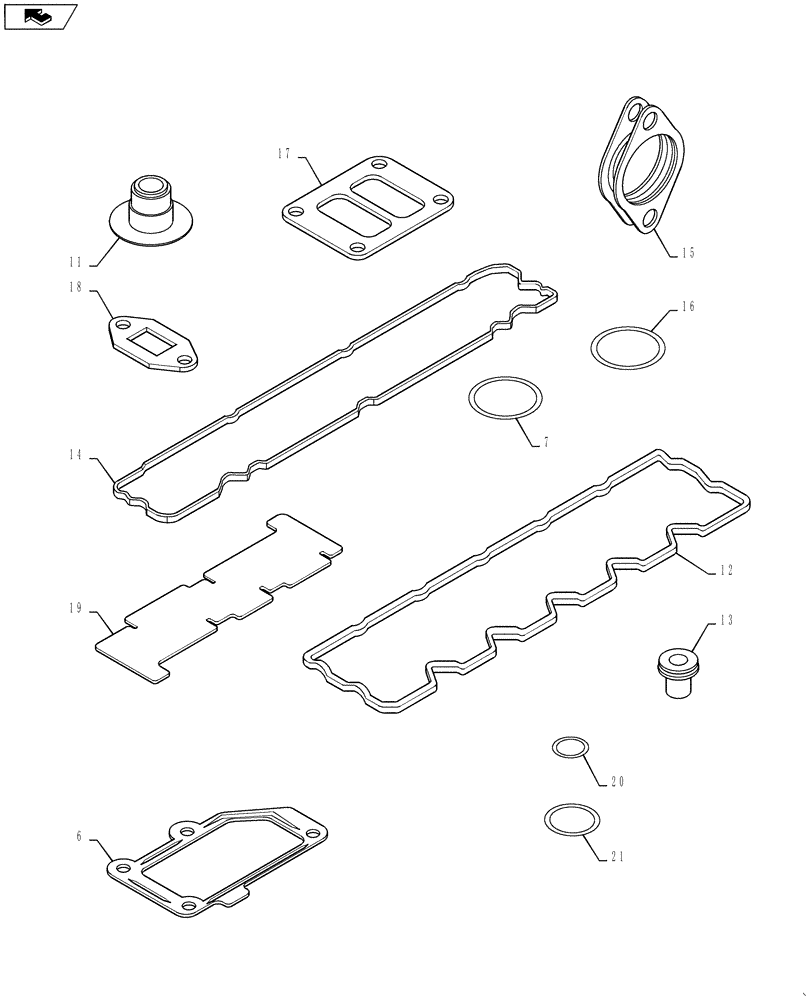

Схема запчастей Case IH 4420 - (03-022) - GASKET KIT-VALVE GRIND (01) - ENGINE
6
15
11
16
17
21
19
12
13
18
14
20
home
7

Артикул

Название

Примечание

Количество

0

87490404

ENGINE GASKET KIT

Valve Grind

1шт.

Includes Refs. 5 - 21

1шт.

5

87338651

O-RING,0.139" Thk x 1.859" ID, -225

Seal

1шт.

Not Shown

1шт.

6

87335272

GASKET

2шт.

7

87350420

O-RING,2.62mm Thk x 82.22mm ID

O-ring

1шт.

8

4899689

SEALING WASHER,7mm ID x 15mm OD x 1.5mm Thk

6шт.

Not Shown

1шт.

9

4890926

O-RING,3mm Thk x 20.9mm ID, 60 Duro

20.9 ID x 3

6шт.

Not Shown

1шт.

10

87612821

O-RING,1.6mm Thk x 8.1mm ID

O-RING

1шт.

Not Shown

1шт.

11

87352235

SEAL

Valve Stem

24шт.

12

87344755

GASKET

Rocker Lever Housing

1шт.

13

87342136

ISOLATOR

5шт.

14

87345861

GASKET,3.2mm Thk

Valve Cover

1шт.

15

J937479

MANIFOLD GASKET

EXHAUST

6шт.

16

87348322

SEAL,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

6шт.

17

J901356

GASKET,0.5mm Thk

TURBOCHARGER

1шт.

18

J937706

GASKET,0.79mm Thk

OIL DRAIN

1шт.

19

87404692

GAUGE

Cylinder Head, Bolt Length

1шт.

20

313262A1

O-RING,0.07" Thk x 0.364" ID

1шт.

21

J678603

O-RING,2.2mm Thk x 9.3mm ID

1шт.

Выбрано товаров: 23
