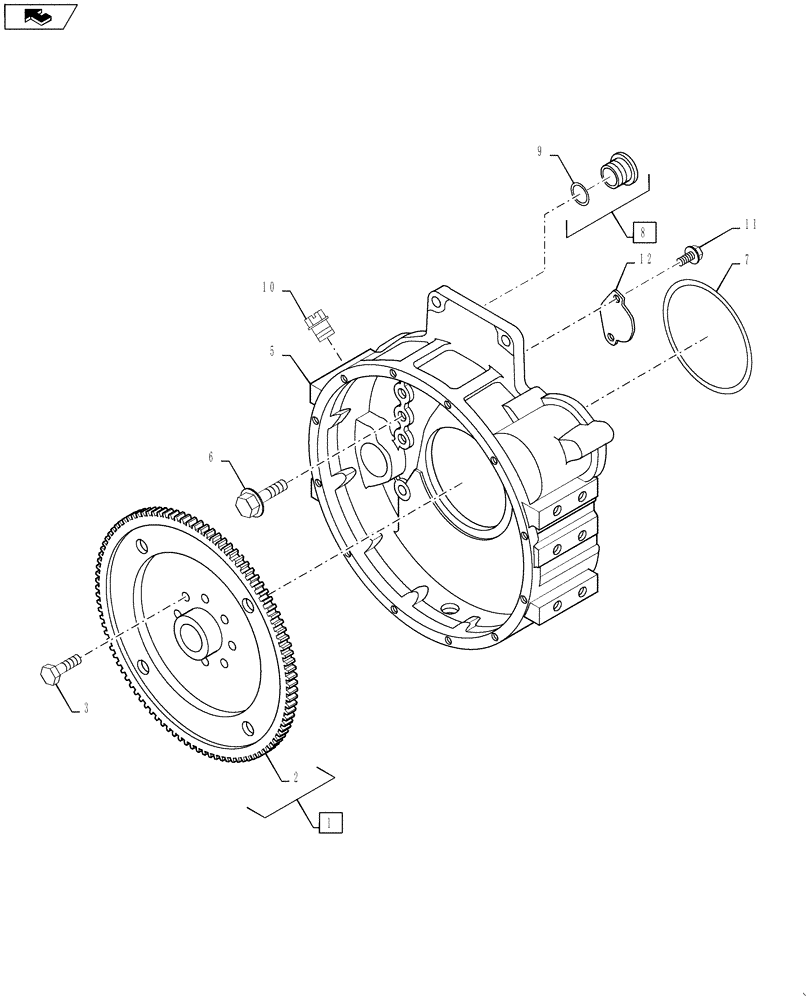

Запчасти Case IH 4420 (03-021) - FLYWHEEL AND BACKING PLATE (01) - ENGINE

1

87690903

FLYWHEEL

Assembly

1шт.

Includes Ref. 2

1шт.

2

J905427

GEAR

1шт.

3

4894641

CAPTIVE WASHER SCREW,M12 X 1.25 X 31mm

8шт.

5

J906689

HOUSING

Flywheel

1шт.

6

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

12шт.

7

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING

1шт.

8

J910248

PLUG

1шт.

Includes Ref. 9

1шт.

9

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

10

353-225

PLUG,Sltd Hd, 3/4"-16

1шт.

11

J912072

SELF-TAP SCREW

2шт.

12

J925234

PLATE

1шт.
