Запчасти Case IH 4420 (03-019) - PISTONS, CONNECTING RODS (01) - ENGINE

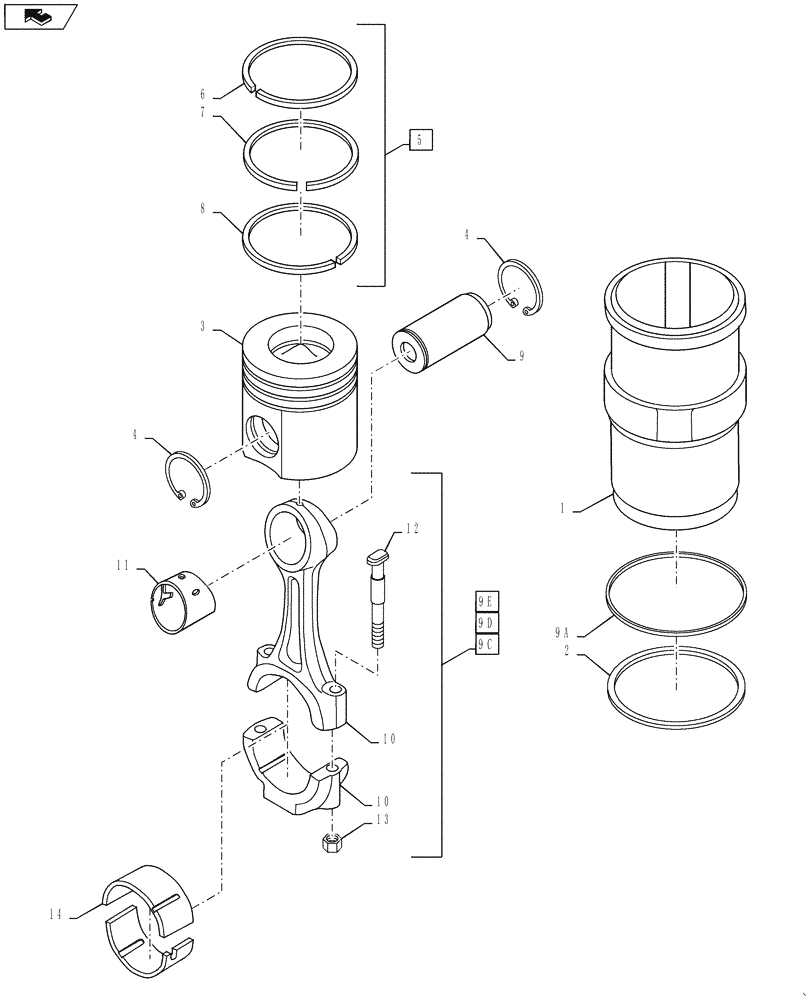

Схема запчастей Case IH 4420 - (03-019) - PISTONS, CONNECTING RODS (01) - ENGINE
home
9c
6
3
13
12
10
2
11
9d
14
4
9e
7
5
9
8
4
9a
1
10

Артикул

Название

Примечание

Количество

0

87343262

KIT

Piston & Sleeve, Standard

6шт.

Includes Refs. 1 - 8

1шт.

1

J948095

SLEEVE CYLINDER,114.02mm ID x 130.95mm OD x 234.12mm L

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON

1шт.

4

100-21175

SNAP RING,1.75", Int, #175

2шт.

5

87343194

PISTON RINGS KIT

1шт.

Includes Refs. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

RING, TOP

1шт.

7

NSS

NOT SOLD SEPARAT

RING, MIDDLE

1шт.

8

NSS

NOT SOLD SEPARAT

RING, BOTTOM

1шт.

9

87342670

PISTON PIN

6шт.

9a

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

1шт.

9a

J924446

SHIM,126.8mm ID x 130.5mm OD x 0.38mm Thk

1шт.

9a

J924447

SHIM,126.8mm ID x 130.5mm OD x 0.5mm Thk

1шт.

9a

J924448

SHIM,0.762mm Thk

1шт.

9a

J924449

SHIM,1.000mm Thk

1шт.

9b

87342975

CORE-ROD CONNECTING

CORE-CONNECTING ROD

1шт.

9c

84145656

CONNECTING ROD

With Bushing

6шт.

Includes Refs. 10 - 13

1шт.

Includes Refs. 10 - 13

1шт.

Includes Refs. 10 - 13

1шт.

9c

84145656R

REMAN-CONNECTING ROD

With Bushing

6шт.

9c

84145656C

CORE-ROD CONNECTING

Return Part Number, Core Connecting Rod With Bushing

6шт.

9c

84487529R

REMAN-CONNECTING ROD

4420 (8/06 - 9/11), Reman for New P/N 84145656

6шт.

9c

84487529C

CORE-ROD CONNECTING

Return Part Number

6шт.

10

NSS

NOT SOLD SEPARAT

ROD

1шт.

11

87343250

BUSHING,45.03mm ID x 49mm OD x 43mm L

1шт.

12

J928870

ROD

connecting rod

2шт.

13

J934864

NUT

2шт.

14

87356776

BEARING LINER

Bearing Liner, Standard

6шт.

14

84156219

BEARING LINER

kit - upper and lower, 0.25 mm undersize

6шт.

14

84156220

BEARING SET

kit - upper and lower, 0.50 mm undersize

6шт.

14

84156221

BEARING SET

Kit - Upper and Lower, 0.75 mm Undersize

6шт.

14

84156222

BEARING SET

kit - upper and lower, 1.00 mm undersize

6шт.

Выбрано товаров: 35
