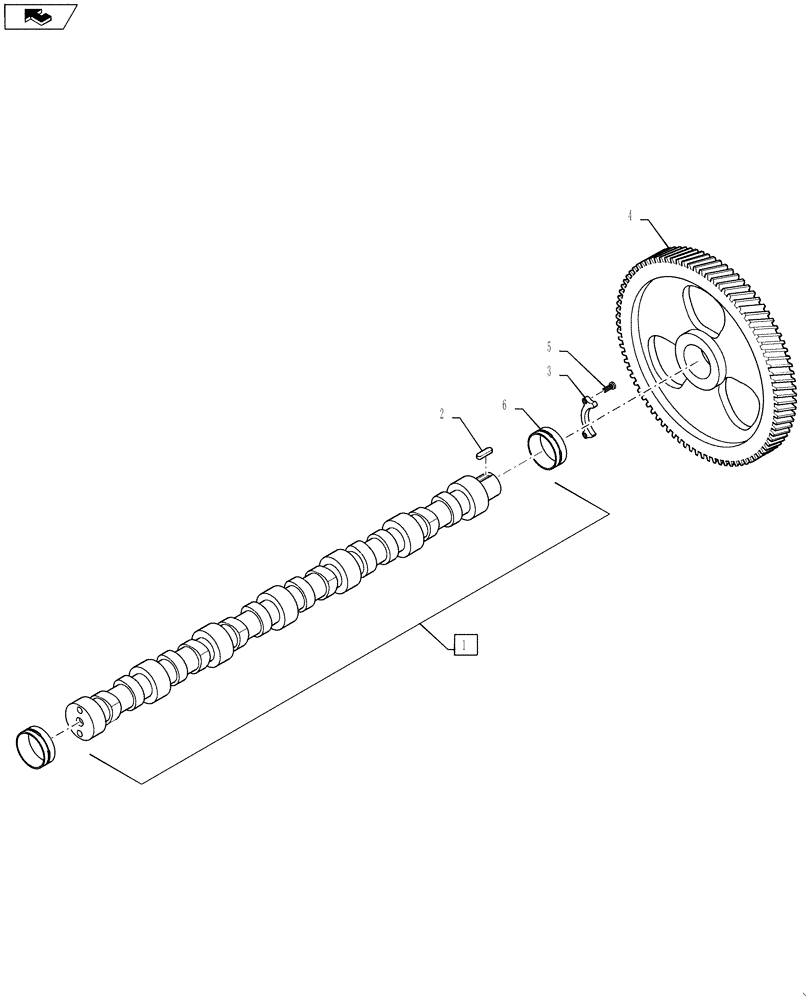

Запчасти Case IH 4420 (03-017) - CAMSHAFT (01) - ENGINE

1

87342996

CAMSHAFT

Assembly

1шт.

Includes Ref. 2

1шт.

87342996R

REMAN-CAMSHAFT

4420 ( 8/06 - 9/11 )

1шт.

87342996C

CORE-CAMSHAFT

Return Number

1шт.

2

87453128

PIN,4mm OD x 7mm L

Dowel

1шт.

3

J944001

SUPPORT

CAMSHAFT THRUST

1шт.

4

87342988

GEAR

Camshaft

1шт.

5

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

6

J945329

CAMSHAFT BEARING,60.08mm ID x 64.13mm OD x 25mm L

7шт.
