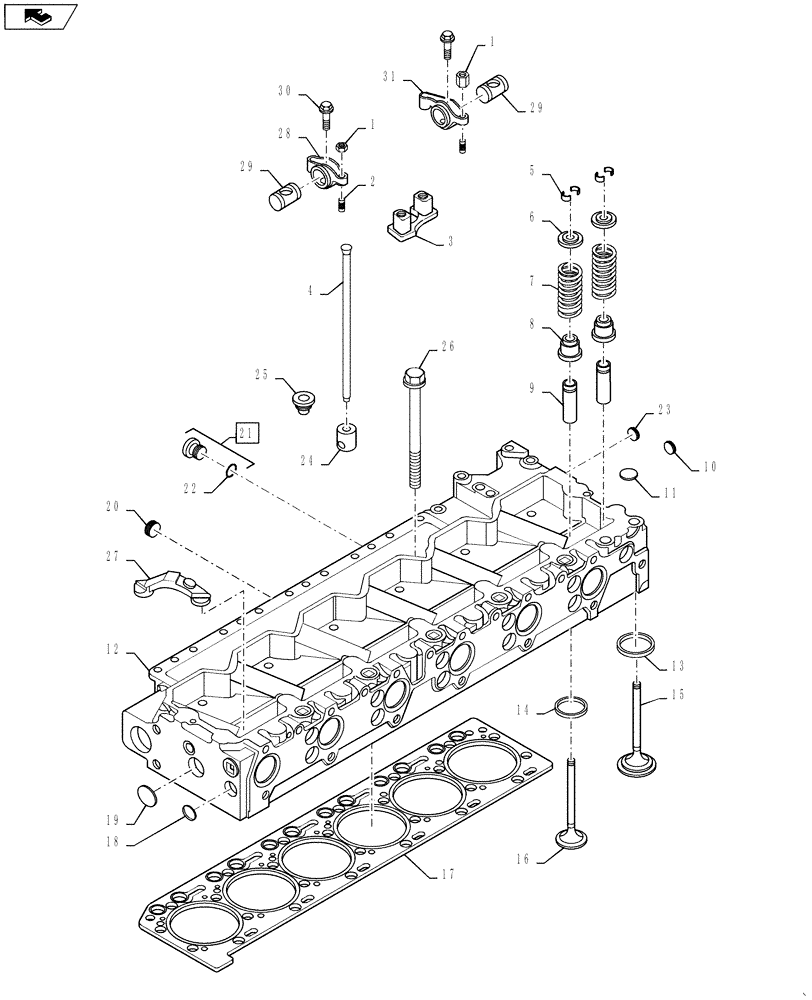

Запчасти Case IH 4420 (03-015) - CYLINDER HEAD AND VALVE MECHANISM (01) - ENGINE

0

87652995

HEAD ASSY.

With Valves

1шт.

Includes Refs. 1 - 8

1шт.

84286671R

REMAN-CYLINDER HEAD

Reman for New P/N 87652995

1шт.

84286671C

CORE-CYLINDER HEAD

Return Part Number

1шт.

1

A77902

NUT

Special, 3/8"-24, Heavy, Type 8

1шт.

2

NSS

NOT SOLD SEPARAT

INSERT

1шт.

3

J941140

SUPPORT

6шт.

4

87435955

PUSH ROD

12шт.

5

CASJ900250

RETAINER

COLLET, VALVE

48шт.

6

J944452

RETAINER

ROTATER, VALVE

24шт.

7

J944711

VALVE SPRING

24шт.

8

87352235

SEAL

Valve Stem

12шт.

8

J943888

SEAL

12шт.

9

J948102

VALVE GUIDE

24шт.

10

A77590

PLUG

Expansion, 28.7 mm od

2шт.

11

87344079

PLUG

6шт.

12

NSS

NOT SOLD SEPARAT

HEAD ASSY, CYL

1шт.

13

J940152

INSERT

INTAKE

12шт.

14

87344002

INSERT

EXHAUST

12шт.

15

87343688

STD INLET VALVE

STD ENGINE INLET VALVE Intake

12шт.

16

87343693

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

12шт.

17

87737237

CYLINDER HEAD GASKET,1.81mm Thk

Standard

1шт.

18

87344118

PLUG

Expansion, 30 mm

2шт.

19

J945093

PLUG

EXPANSION

1шт.

20

444704

PLUG,Hex Soc, 1/2"-14

1шт.

21

J678923

PLUG,M10 x 1

10 MM

1шт.

Includes Ref. 22

1шт.

22

86625087

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

23

87344108

PLUG

Expansion

1шт.

24

87435851

TAPPET

12шт.

25

87644763

GUIDE

Tappet

12шт.

26

87344126

BOLT

M14 x 160

26шт.

27

J943445

CROSSBAR

12шт.

28

87435953

ROCKER ARM

Lever, Intake

6шт.

29

87435951

SHAFT

6шт.

30

J943933

SCREW,Hex Flg, M10 x 1.5 x 68mm, Cl 10.9

12шт.

31

87435952

ROCKER ARM

Lever, Exhaust

6шт.
