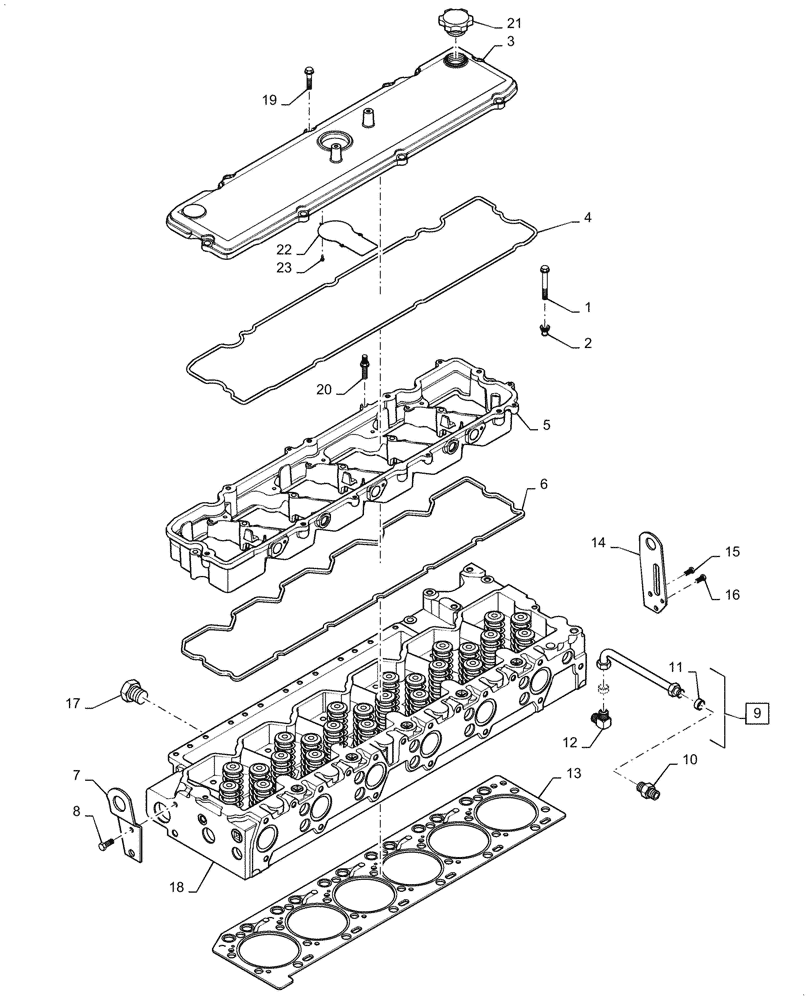

Запчасти Case IH 4420 (03-014) - CYLINDER HEAD AND COVER (01) - ENGINE

1

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

8шт.

2

87342136

ISOLATOR

8шт.

3

87516366

COVER ASSY

1шт.

4

87345861

GASKET,3.2mm Thk

Valve Cover

1шт.

5

87344767

HOUSING

Rocker

1шт.

6

87344755

GASKET

Rocker Lever Housing

1шт.

7

87340305

LIFTING EYE

Front

1шт.

8

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

2шт.

9

J924589

TUBE,6.35 mm OD x 112.6 mm L

Incl 11

1шт.

10

87026319

HYD CONNECTOR,1/2"-24 x 1/8" NPTF w/Nut

1шт.

11

87017025

SLEEVE,5.33mm ID x 10.72mm OD x 5.41mm L

2шт.

12

87026320

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

1шт.

13

87737237

CYLINDER HEAD GASKET,1.81mm Thk

Standard

1шт.

14

87340301

LIFTING EYE

Rear

1шт.

15

87015870

BOLT,Hex, M10 x 20mm, Cl 10.9, Full Thd

2шт.

16

87340324

BOLT

1шт.

17

J906619

PLUG,1/8" - 27

Pipe, 1/8-27 hex socket

1шт.

18

87652995

HEAD ASSY.

With Valves

1шт.

18

84286671R

REMAN-CYLINDER HEAD

Reman for New P/N 87652995

1шт.

18

84286671C

CORE-CYLINDER HEAD

Return Part Number

1шт.

19

845-8075

BOLT,Hvy Hex, M8 x 75mm, Cl 8.8

7шт.

20

87340279

SCREW,Hex Flg, M8 x 1.25 x 35mm

M8 x 35

1шт.

21

87429619

FILLER CAP

1шт.

22

87345891

BAFFLE

1шт.

23

87345887

SELF-TAP SCREW,Sl Hex Wshr Hd, #6 - 32 x 3/8"

3шт.
