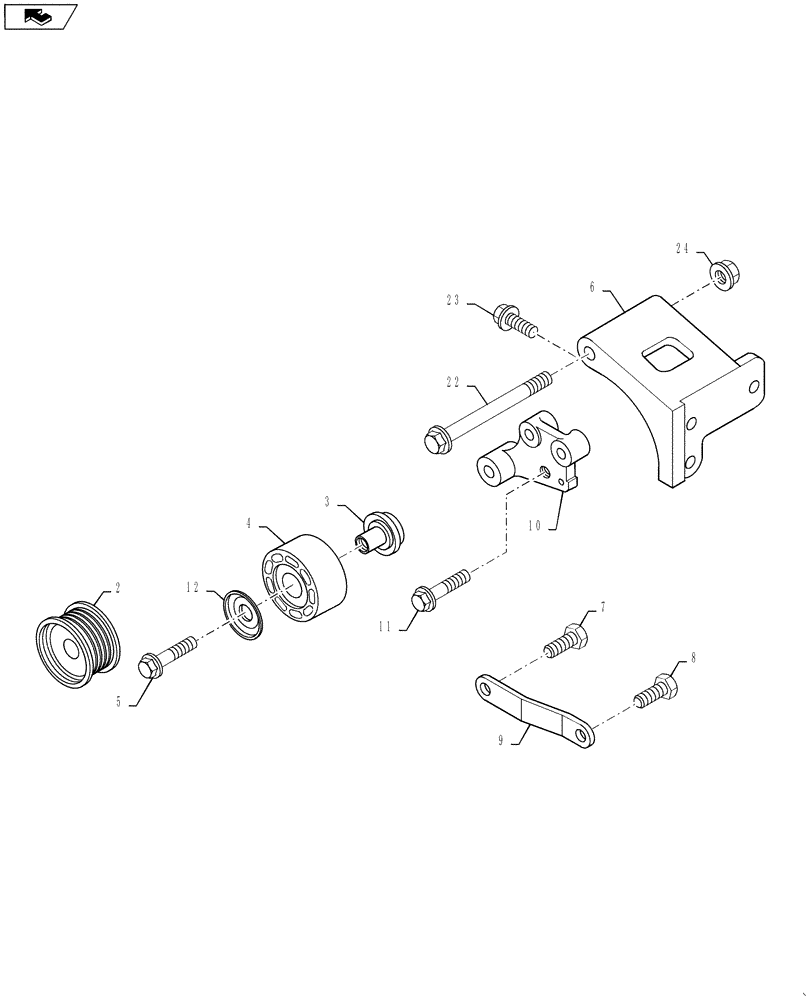

Запчасти Case IH 4420 (03-013) - ALTERNATOR-MOUNTING (01) - ENGINE

2

J965146

1шт.

87452704 Can be used per engineering, but has a keyway

1шт.

3

J935229

SHAFT

IDLER

1шт.

4

87531752

PULLEY

idler

1шт.

5

87531758

BOLT

1шт.

6

J944405

SUPPORT

ALTERNATOR

1шт.

7

326-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1шт.

8

854-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 10.9

1шт.

9

J944407

BRACE

1шт.

10

87531751

SUPPORT

idler pulley

1шт.

11

87531764

BOLT

3шт.

12

87531753

SHIELD

dust

1шт.

22

87030021

BOLT,Hex, M12 x 150mm, Cl 10.9

1шт.

23

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

3шт.

24

86512497

FLANGE NUT,M12 x 1.75, Cl 10

1шт.
