Запчасти Case IH 4420 (03-009[01]) - TURBOCHARGER SYSTEM (01) - ENGINE

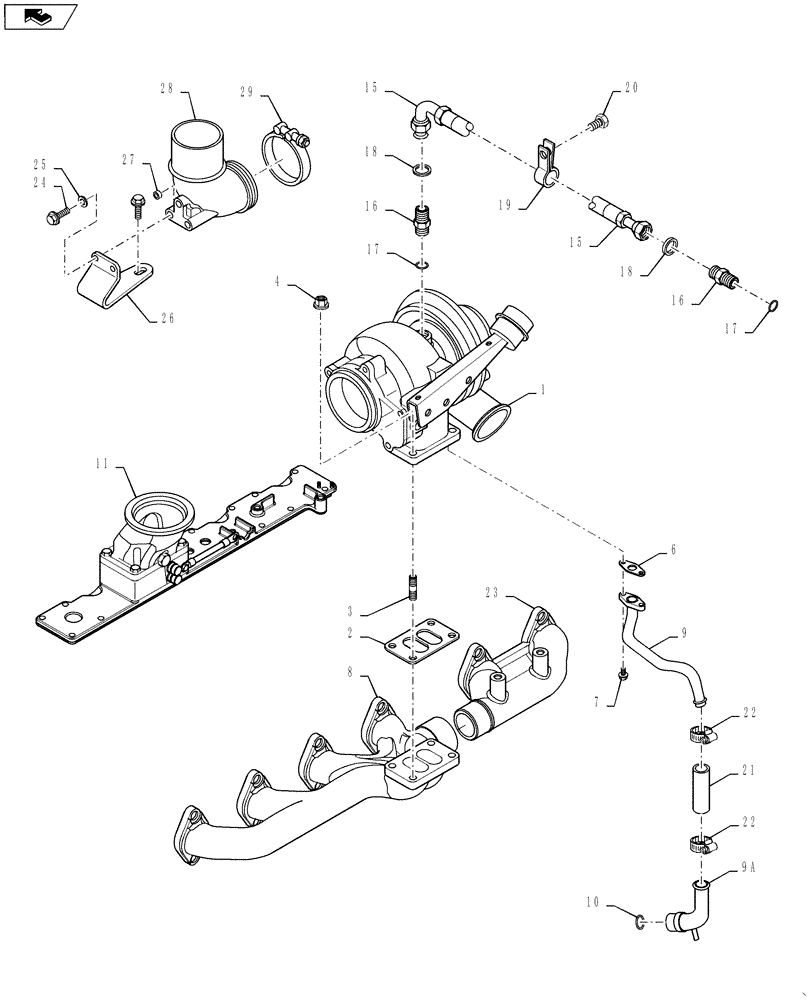

Схема запчастей Case IH 4420 - (03-009[01]) - TURBOCHARGER SYSTEM (01) - ENGINE
24
19
9a
8
28
18
21
17
home
25
20
7
18
16
3
15
22
22
16
27
23
6
10
1
26
9
11
29
17
15
2
4

Артикул

Название

Примечание

Количество

1

87355317

TURBOCHARGER

1шт.

1

87355317R

REMAN-TURBOCHARGER

Reman for New PN 87355317

1шт.

1

87355317C

CORE-TURBOCHARGER

Return Number, TURBOCHARGER

1шт.

1

84269951R

REMAN-TURBOCHARGER

Reman For New PN 87355317

1шт.

1

84269951C

CORE-TURBOCHARGER

Return Number

1шт.

2

J901356

GASKET,0.5mm Thk

TURBO MOUNT

1шт.

3

J818823

STUD

M10 X 1.5

4шт.

4

J818824

FLANGE NUT

M10

4шт.

6

J937706

GASKET,0.79mm Thk

OIL DRAIN

1шт.

7

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

8

NSS

NOT SOLD SEPARAT

EXHAUST

1шт.

See Fig. 03-007

1шт.

9

86993028

TUBE,0.875" OD

TURBO DRAIN AT TURBO

1шт.

9a

J931973

TUBE,0.875" OD

TURBO DRAIN

1шт.

10

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

11

87340282

COVER

Intake Manifold

1шт.

15

87345099

FLEXIBLE HOSE,9.53mm ID x 385mm L, SAE 100R14

533 mm (21")

1шт.

16

J922789

HYD CONNECTOR

MALE

2шт.

Includes Refs. 17 & 18

1шт.

17

J678603

O-RING,2.2mm Thk x 9.3mm ID

1шт.

18

J922794

SEALING RING

SEALRING

1шт.

19

87434675

CLAMP,10.16mm ID, 10.41mm Bolt Hole, P Type

1шт.

20

615-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

21

J286499

HOSE

76MM (3 IN), TURBO DRAIN TUBE

1шт.

22

87016721

HOSE CLAMP,17.5mm - 31.7mm

2шт.

23

NSS

NOT SOLD SEPARAT

EXHAUST

1шт.

See Fig. 03-007

1шт.

24

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

25

495-81009

WASHER,.469" x 1" x .120"

2шт.

26

J944060

BRACE

1шт.

27

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

28

A173668

ELBOW

Turbo Exhaust

1шт.

See Fig. 03-006

1шт.

29

A170807

CLAMP,102mm ID

4" T-Bolt

1шт.

Выбрано товаров: 34
