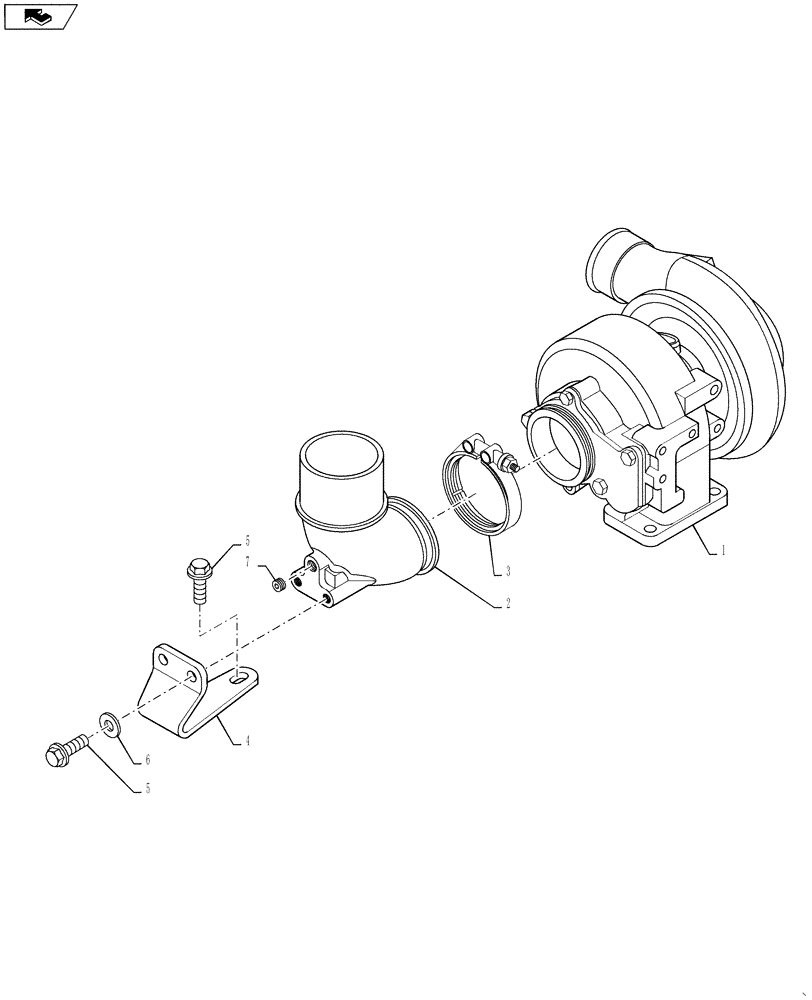

Запчасти Case IH 4420 (03-006) - EXHAUST SYSTEM (01) - ENGINE

1

NSS

NOT SOLD SEPARAT

TURBOCHARGER SYSTEM - ENGINE, SEE FIG.03-009

1шт.

2

A173668

ELBOW

Turbo Exhaust

1шт.

3

A170807

CLAMP,102mm ID

4" T-Bolt

1шт.

4

J944060

BRACE

BRACKET - EXHAUST OUTLET CONNECTION

1шт.

5

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

6

495-81009

WASHER,.469" x 1" x .120"

2шт.

7

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.
