Запчасти Case IH 4420 (03-005) - FRONT GEAR COVER (01) - ENGINE

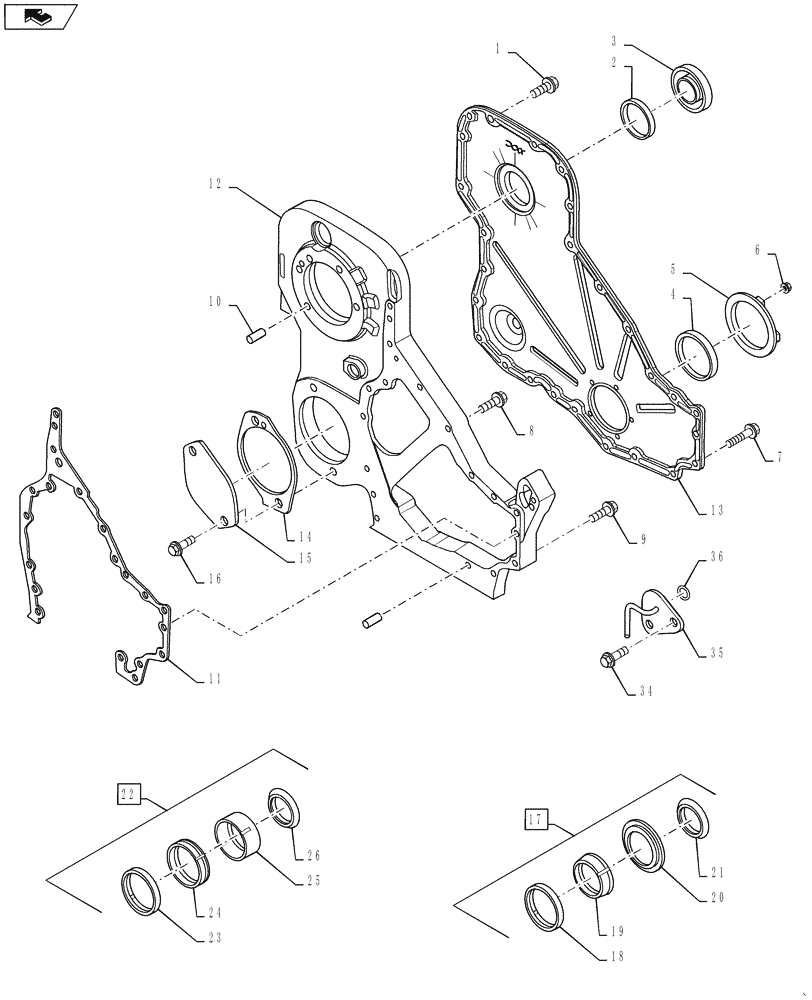

Схема запчастей Case IH 4420 - (03-005) - FRONT GEAR COVER (01) - ENGINE
34
35
12
21
18
2
19
26
25
20
23
1
7
13
22
10
4
11
17
8
24
5
36
home
15
9
14
16
3
6

Артикул

Название

Примечание

Количество

1

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

15шт.

2

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

3

J903463

PLUG,M63 x 5

front access

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL, (ORDER A77790 OR A77808)

1шт.

5

J941786

CARRIER

1шт.

6

87493304

FLANGE NUT

FLANGE, M6 P/T NON-DIR ALL MTL 8 PL

5шт.

7

J926863

FLANGE BOLT

Hex Flange, 8 - 1.25 X 50 MM, Class 10.9

11шт.

8

J943885

BOLT

M8 X 40

3шт.

9

J926846

FLANGE BOLT

Hex Flange, 8 - 1.25 X 20 MM, Class 10.9

3шт.

11

J944293

GASKET,1.01mm Thk

1шт.

12

87564445

COVER

Housing Gear

1шт.

13

87350310

COVER

1шт.

14

J940245

GASKET,1.27mm Thk

hydraulic pump

1шт.

15

J940246

COVER

PLATE, ACCESSORY DRIVE

1шт.

16

86624962

BOLT,Hex, M12 x 25mm, Cl 10.9, Full Thd

2шт.

17

A77790

SEAL KIT

Oil, Crankshaft Front

1шт.

Includes Refs. 22-25

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL

1шт.

19

NSS

NOT SOLD SEPARAT

TOOL

1шт.

20

NSS

NOT SOLD SEPARAT

TOOL

1шт.

21

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

1шт.

22

A77808

SERVICE KIT

Wear Sleeve, Crankshaft Front

1шт.

Includes Refs. 27-30

1шт.

23

NSS

NOT SOLD SEPARAT

KIT, SERVICE

1шт.

24

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

25

NSS

NOT SOLD SEPARAT

TOOL

1шт.

26

J924987

SHIELD,77.14mm ID x 89.38mm OD x 6.35mm Thk

1шт.

27

J920706

PLUG

1шт.

Not Shown

1шт.

28

444704

PLUG,Hex Soc, 1/2"-14

2шт.

Not Shown

1шт.

29

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

Not Shown

1шт.

34

854-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

2шт.

35

87358314

3 WAY CONNECTION

Oil Drain

1шт.

36

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

1шт.

Выбрано товаров: 36
