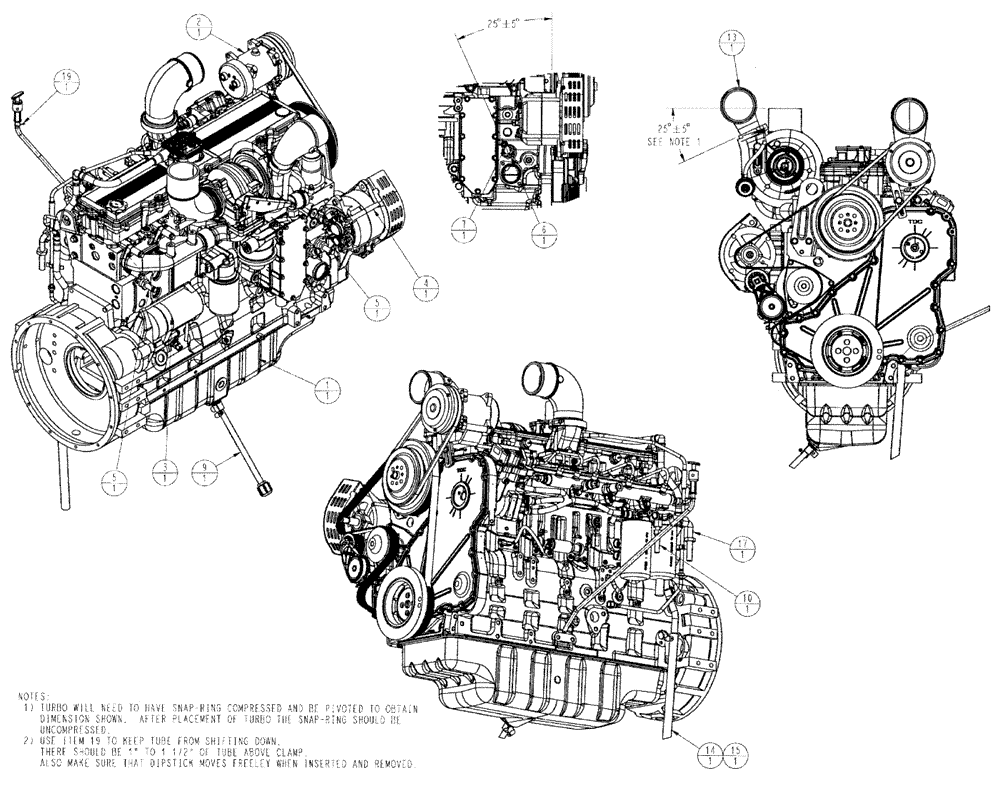

Запчасти Case IH 4420 (03-001) - ENGINE GROUP (01) - ENGINE

1

87434109

ENGINE

8.3L 285 HP T3

1шт.

1a

87390942

SHORT ENGINE

Block

1шт.

1b

87390942R

REMAN-SHORT ENGINE

Block, Reman

1шт.

1c

87390942C

CORE-SHORT ENGINE

Block, Core

1шт.

2

BN324270

GROUP, A/C

1шт.

See Fig. 03-048

1шт.

3

BN324040

GROUP, ENGINE

1шт.

See Fig. 03-002

1шт.

4

87634472

GROUP, ENGINE

1шт.

See Fig. 03-003

1шт.

5

217-381

FITTING,5/8" Hose Barb x 3/4" Male NPTF

2шт.

6

BN317988

FITTING

12MP-12FP

1шт.

7

217-145

ELBOW,45 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

1шт.

8

87521716

V-BELT,2270.00 mm L

Fan

1шт.

9

87584970

KIT

Oil Drain

1шт.

See Fig. 03-049

1шт.

10

87573449

FITTING

8GS-8FJX

1шт.

13

BN319006

ELBOW GRP

1шт.

See Fig. 03-042

1шт.

14

87328014

CRANKCASE BREATHER

1шт.

15

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

1шт.

17

87535395

FITTING

10GS-10FJX90S, 90º Elbow

1шт.

19

86637701

HOSE CLAMP,12.45mm - 12.95mm

1шт.
