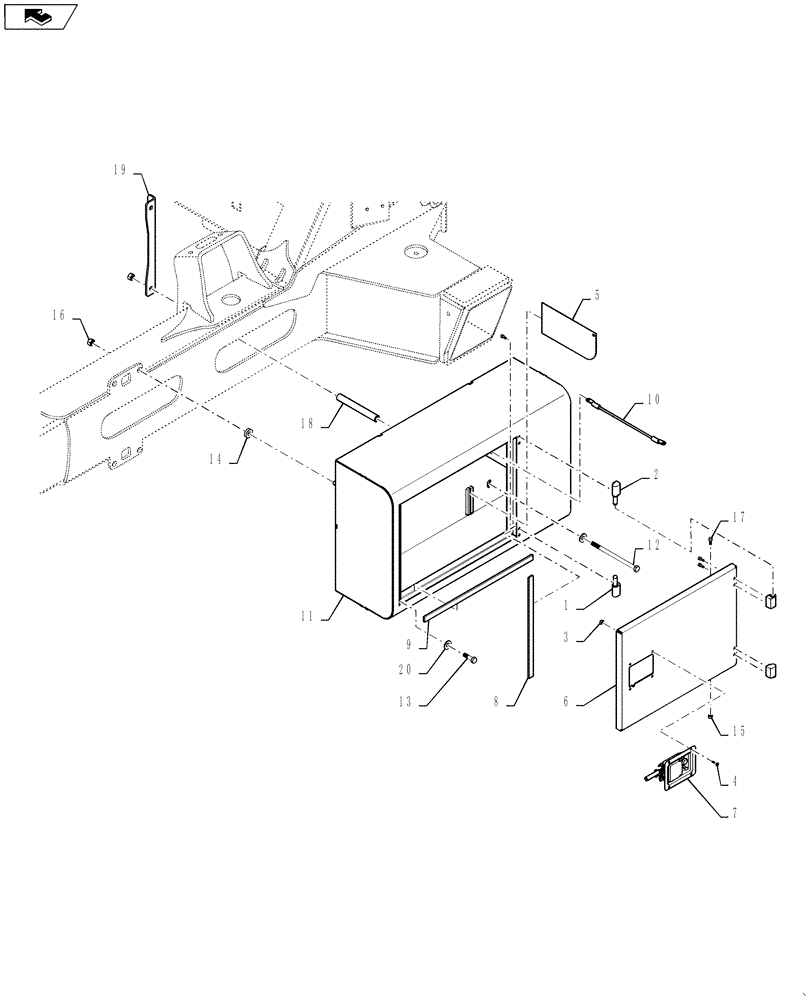

Запчасти Case IH 4420 (04-049) - STORAGE BOX GROUP, LH Suspension & Frame

1

BN306286

HINGE

NYLON, TYPE B, M6

1шт.

2

BN306290

HINGE

NYLON, TYPE A, M6

1шт.

3

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

4шт.

4

BN311631

BOLT,#10 - 24 x 3/4", SST

10-24 X .75, BSH, SS

4шт.

5

BN323911

DIVIDER

STORAGE BOX

1шт.

6

BN323918

DOOR

WLD, STORAGE BOX LH

1шт.

7

BN323944

LATCH

PADDLE HANDLE

1шт.

8

BN323948

SEAL

TRIM

2шт.

9

BN323949

SEALING STRIP

TRIM

2шт.

10

F64526

CABLE

ASSY, DOOR

1шт.

11

87267620

BOX

LH

1шт.

12

814-12200

BOLT,Hex, M12 x 1.75 x 200mm, Cl 8.8

2шт.

13

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

2шт.

14

87266323

SPACER

2шт.

15

353308

NUT,M6 x 1.0, Cl 8

2шт.

16

100038

NUT,M12 x 1.75, Cl 8

4шт.

17

864-6016

HEX SOC SCREW,M6 x 16mm, Cl 8.8

10шт.

18

87266322

SPACER

TUBE

1шт.

19

87266320

SUPPORT

Brace, Box Mount

1шт.

20

87528989

WASHER,12.2mm ID x 30mm OD x 2.5mm Thk

M12 x 30 x 2.5 DOR

1шт.
