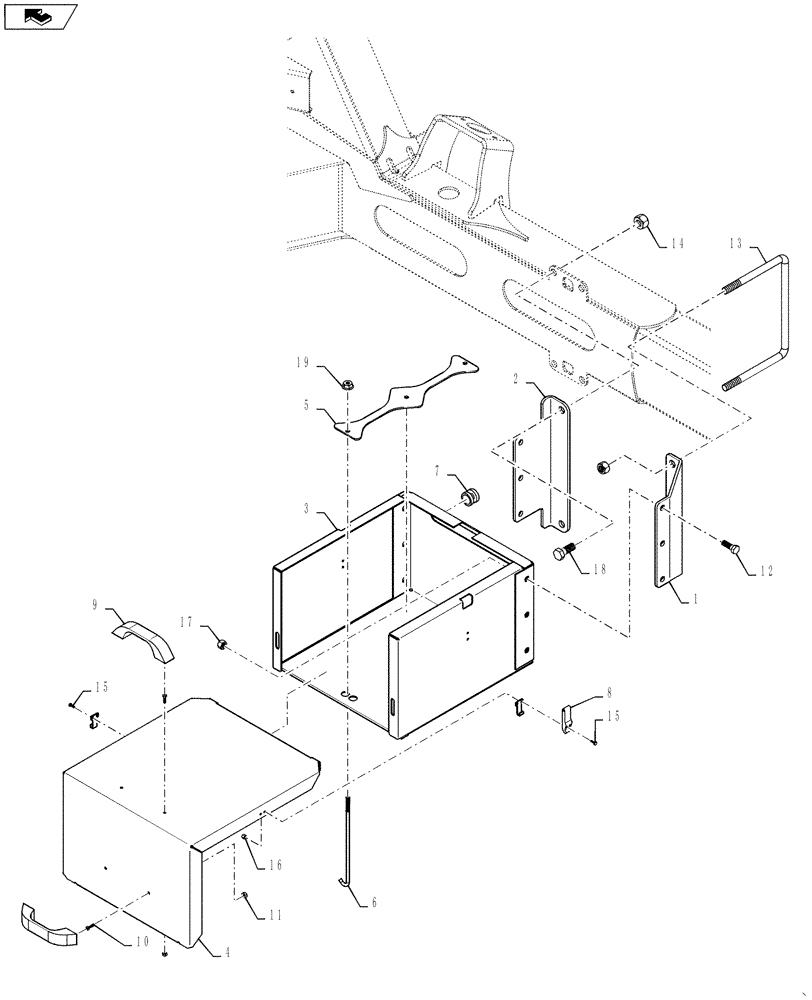

Запчасти Case IH 4420 (04-047) - BATTERY BOX GROUP Suspension & Frame

1

BN325941

MOUNTING PLATE

BATTERY BOX

1шт.

2

343276A1

MOUNTING PLATE

BATTERY BOX

1шт.

3

BN321475

BATTERY BOX

1шт.

4

BN321511

COVER

WELDMENT, BATT BOX

1шт.

5

BN321501

CLAMP

HOLDDOWN, BATTERY

1шт.

6

87691876

ROD

Battery Hold Down

3шт.

7

BN2290753

GROMMET

2870 (7/8" Hole), Years: -01-APR-09

7шт.

7

84203895

LOOM

Split, 1/4" x 635 mm, Start Year: 01-APR-09

1шт.

8

BN306240

LATCH

SOFT W/ REV. KEEPER

2шт.

9

BN311626

HANDLE

Molded Grab, Black

2шт.

10

BN311631

BOLT,#10 - 24 x 3/4", SST

10-24 x .75, BSH, Stainless Steel

4шт.

11

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

4шт.

12

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

6шт.

13

BN325918

U-BOLT

M16 X 256 ID X 187 IL

1шт.

14

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

4шт.

15

87342151

BOLT,Hex, M4 x 12mm, Cl 8.8, Full Thd

8шт.

16

87344029

NUT,Prev Torque, M4, 0.7 Pitch, Cl 8, DOR

8шт.

17

100038

NUT,M12 x 1.75, Cl 8

6шт.

18

86980444

BOLT,Hex, M16 - 2 x 40mm, Cl 8.8, DOR

2шт.

19

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

3шт.
