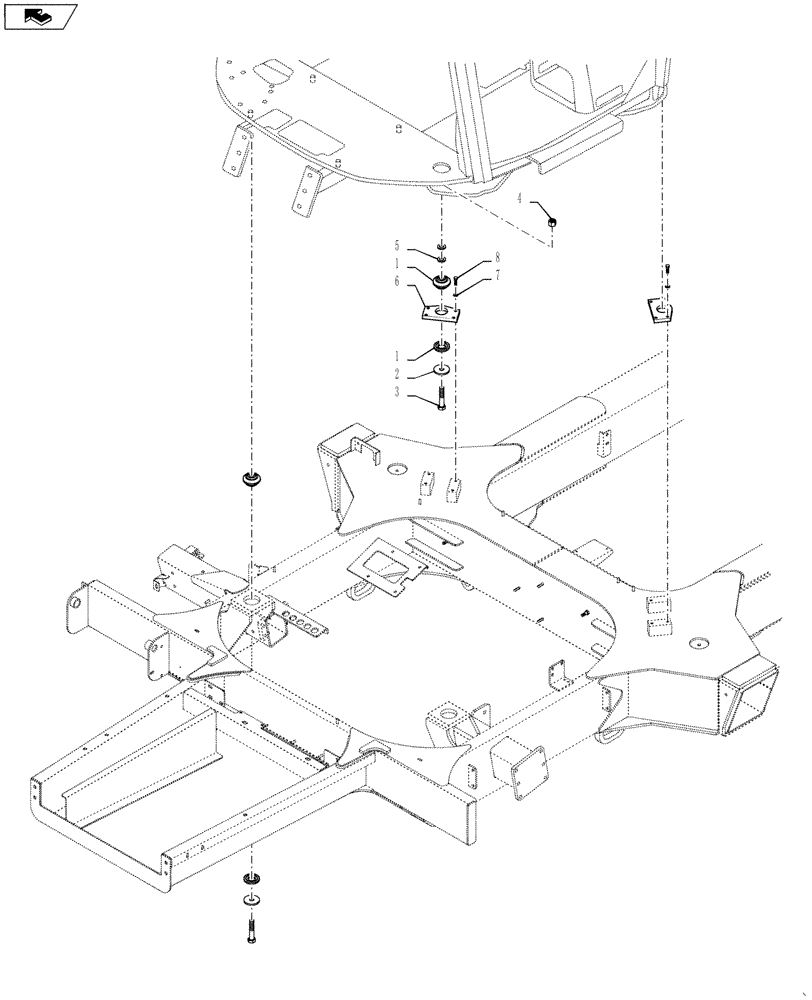

Запчасти Case IH 4420 (04-046) - CAB MOUNTING GROUP Suspension & Frame

1

377678A1

RUBBER MOUNTING

cab isolator

4шт.

2

371043A1

WASHER

SNUBBER, STEEL

4шт.

3

87342028

BOLT,M24 x 120, 10.9, DOR

4шт.

4

86639243

NUT,M24 x 3, Cl 8

4шт.

5

87529311

WASHER,26mm ID x 44mm OD x 5mm Thk

26 x 44 x 5 mm, HDN, DOR

8шт.

6

BN323368

BRACKET

MOUNT

2шт.

7

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

8шт.

8

87022683

BOLT,Hex, M12 x 40mm, Cl 10.9

8шт.
