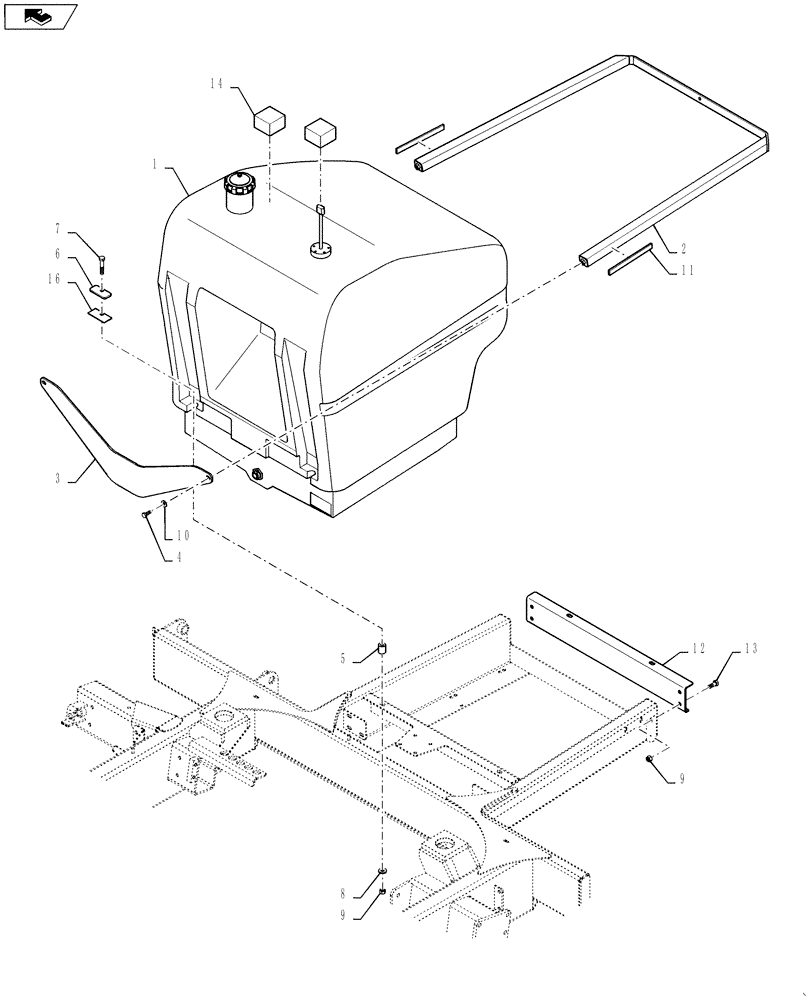

Запчасти Case IH 4420 (04-040) - MOUNT, FUEL TANK GROUP Suspension & Frame

1

87268550

FUEL TANK

Fittings Group, See 04-041 For Breakdown

1шт.

2

342022A1

SUPPORT

brace, fuel tank

1шт.

3

342024A1

SUPPORT

BRACE, FUEL TANK CROSS

1шт.

4

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

2шт.

5

BN67653

BUSHING

TB, RD, bushing

4шт.

6

BN67652

PLATE

Tank Hold Down

4шт.

7

9706693

BOLT,M12 x 60mm, Cl 8.8

4шт.

8

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, HDN, DOR

4шт.

9

100038

NUT,M12 x 1.75, Cl 8

8шт.

10

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

11

BN322644

FOAM INSULATION

SEAL

2шт.

12

343142A1

MOUNTING PLATE

FUEL TANK, HORN

1шт.

13

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

14

86986299

FOAM

Hood Side Supplemental, 3XXX

2шт.

16

84237916

RUBBER MOUNTING

With Adhesive Back

4шт.
