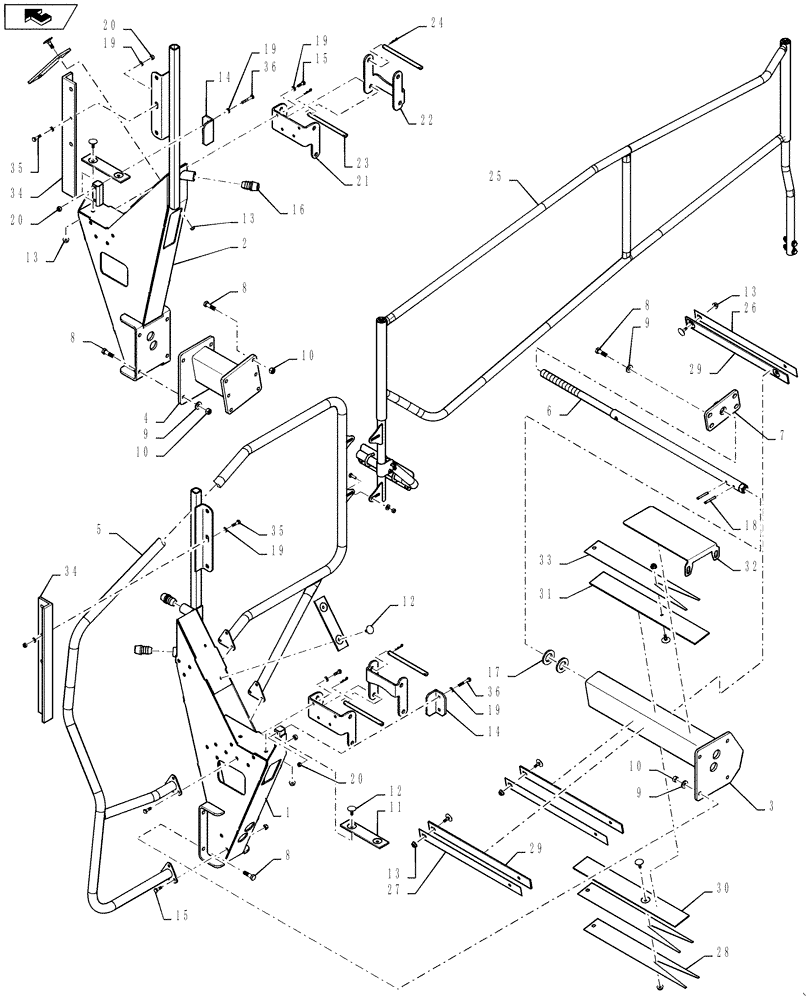

Запчасти Case IH 4420 (04-034) - CRADLE/HANDRAIL ASSEMBLY, 120’ BOOM Suspension & Frame

1

87543913

CRADLE

BOOM, LH

1шт.

2

87543914

CRADLE

BOOM, RH

1шт.

3

87543915

EXTENSION

LH

1шт.

4

87543916

EXTENSION

RH

1шт.

5

87546318

HANDRAIL

120' Boom Cradle

1шт.

6

87547170

THREADED ROD

Cradle Slide

1шт.

7

87547172

BASE PLATE

Cradle Slide

1шт.

8

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

18шт.

9

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, HDN, DOR

12шт.

10

100038

NUT,M12 x 1.75, Cl 8

14шт.

11

87270797

PAD

BOOM REST

4шт.

12

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

18шт.

13

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

18шт.

14

87715010

ANGLE

Protector, Lower

2шт.

15

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

20шт.

16

363226A1

BUMPER

door

3шт.

17

87529309

WASHER,33mm ID x 56mm OD x 5mm Thk

33 x 56 x 5 mm HDN DOR

2шт.

18

87020818

LOCK PIN,1/4" OD x 2" OAL, Slotted

2шт.

19

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

18шт.

20

9991588

NUT,M8 x 1.25, Cl 8

10шт.

21

87486704

LOCK

LOWER-BOOM

2шт.

22

87620212

LOCK

UPPER

2шт.

23

87620384

PIN

BOOM LOCK

4шт.

24

BN71006

COTTER PIN

1/8", #11

8шт.

25

87715076

GROUP, MID PIVOT, SEE FIG 04-035

1шт.

26

342581A1

SHIM

cradle liner, sides

2шт.

27

342582A1

SHIM

cradle liner, sides

2шт.

28

342580A1

SHIM

cradle liner, bottom

1шт.

29

BN323397

LINER

CRADLE SLIDE

4шт.

30

BN321039

LINER

BOTTOM

1шт.

31

BN321038

LINER

TOP

1шт.

32

87681160

PLATE

FRONT WALKWAY

1шт.

33

87664090

SHIM

Cradle Liner, Bottom

2шт.

34

87478090

ANGLE

UPPER

2шт.

35

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

6шт.

36

86980385

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

4шт.
