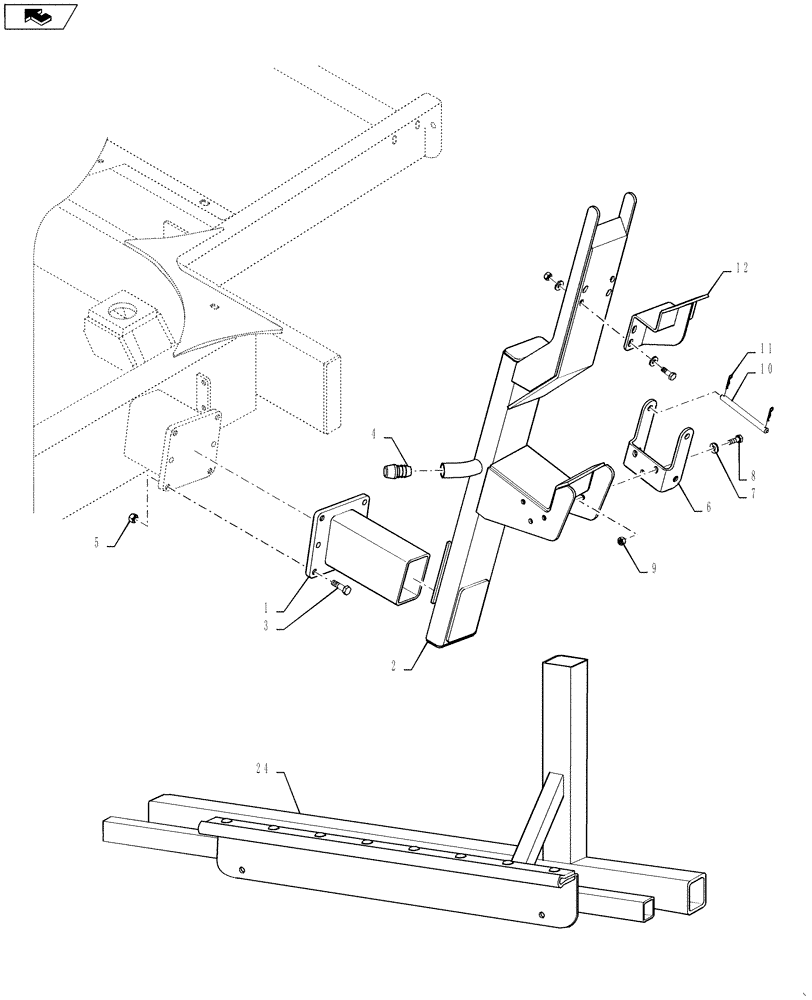

Запчасти Case IH 4420 (04-032) - CRADLE GROUP, RH Suspension & Frame

1

NSS

NOT SOLD SEPARAT

Incl in 2

1шт.

2

87608489

CRADLE

RH Boom

1шт.

3

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

6шт.

4

363226A1

BUMPER

Door

1шт.

5

100038

NUT,M12 x 1.75, Cl 8

6шт.

6

342585A1

PLATE

BOOM LOCK

1шт.

7

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

11шт.

8

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

7шт.

9

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

7шт.

10

342586A1

PIN,12.7mm OD x 154mm L

BOOM LOCK

1шт.

11

BN70006

CLIP, 1/8” #11

2шт.

12

87608486

CRADLE

Top Boom

1шт.

24

87549647

MOUNT

Boom, RH

1шт.

See Fig. 04-036

1шт.
