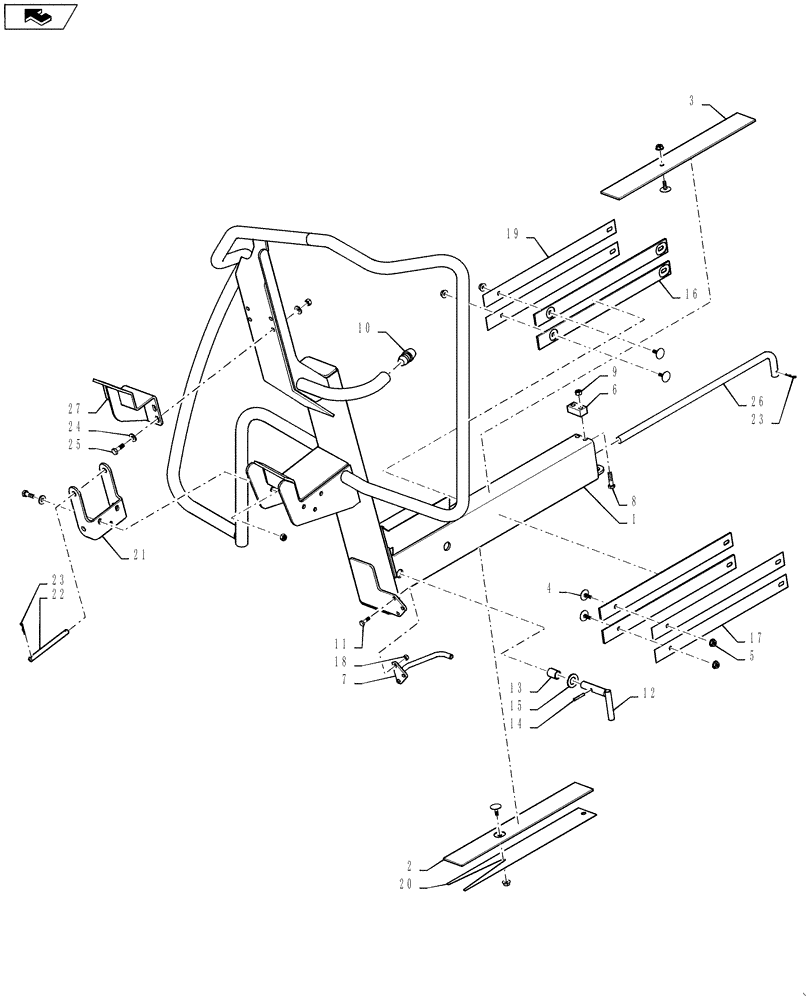

Запчасти Case IH 4420 (04-031) - HANDRAIL GROUP, LH FRONT Suspension & Frame

1

87608482

CRADLE

LH Boom

1шт.

2

BN321039

LINER

BOTTOM

1шт.

3

BN321038

LINER

TOP

1шт.

4

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

10шт.

5

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

10шт.

6

BN321925

STOP

BOOM CRADLE

1шт.

7

BN322051

HOOK

WELDMENT LH

1шт.

8

86980403

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

9

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

9шт.

10

363226A1

BUMPER

door

1шт.

11

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

12

BN321930

PIN

WELDMENT, CRADLE STOP

1шт.

13

BN31937

SPRING

1шт.

14

BN31444

PIN, ROLL

SPRING, 8 X 50MM, ZND HEAVY

1шт.

15

87528981

WASHER,0.81" ID x 1.5" OD x 0.14" Thk

1шт.

16

BN323397

LINER

CRADLE SLIDE

4шт.

17

342581A1

SHIM

cradle liner, sides

2шт.

18

9991588

NUT,M8 x 1.25, Cl 8

3шт.

19

342582A1

SHIM

cradle liner, sides

2шт.

20

342580A1

SHIM

cradle liner, bottom

1шт.

21

342585A1

PLATE

BOOM LOCK

1шт.

22

342586A1

PIN,12.7mm OD x 154mm L

BOOM LOCK

1шт.

23

BN71006

COTTER PIN

1/8", #11

3шт.

24

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

11шт.

25

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

7шт.

26

343700A1

ROD

CRADLE PRY

1шт.

27

87608486

CRADLE

Top Boom

1шт.
