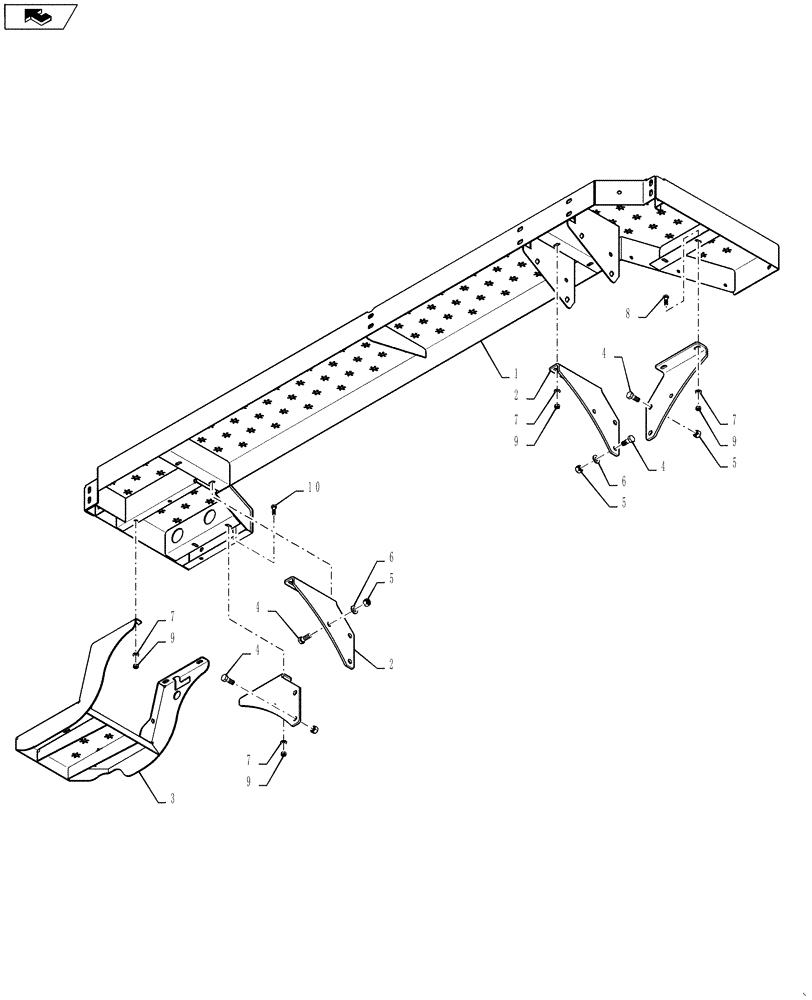

Запчасти Case IH 4420 (04-028) - WALKWAY & HANDRAIL GROUP, MID Suspension & Frame

1

87265511

FLOOR

Deckplate, LH Center

1шт.

2

BN324248

SUPPORT

WALKWAY

4шт.

3

87268615

STEP

1шт.

4

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

8шт.

5

100038

NUT,M12 x 1.75, Cl 8

8шт.

6

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

7

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

20шт.

8

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

9

86528579

NUT,M8 x 1.25

12шт.

10

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.
