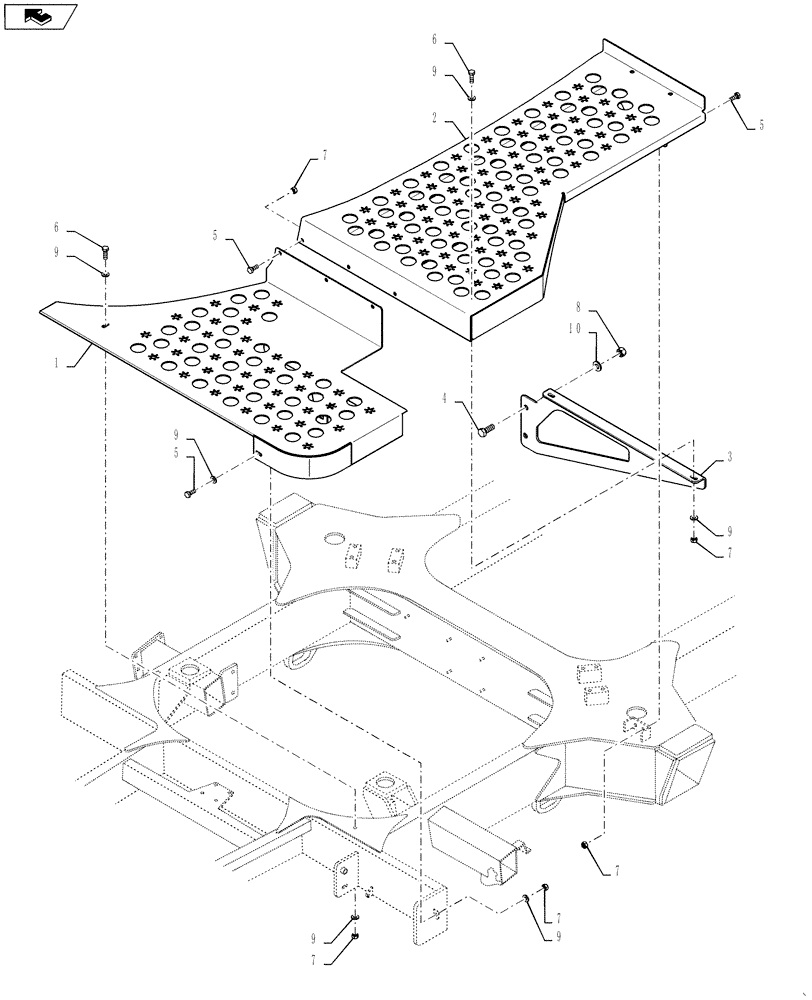

Запчасти Case IH 4420 (04-027) - WALKWAY GROUP, LH FRONT Suspension & Frame

1

BN324308

EXTENSION

WALKWAY WELDMENT, LOWER

1шт.

2

342016A1

EXTENSION

walkway, upper

1шт.

3

87474250

SUPPORT

FRONT WALKWAY

1шт.

4

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

5

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

7шт.

6

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

7

86528579

NUT,M8 x 1.25

10шт.

8

100038

NUT,M12 x 1.75, Cl 8

2шт.

9

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

10

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.
