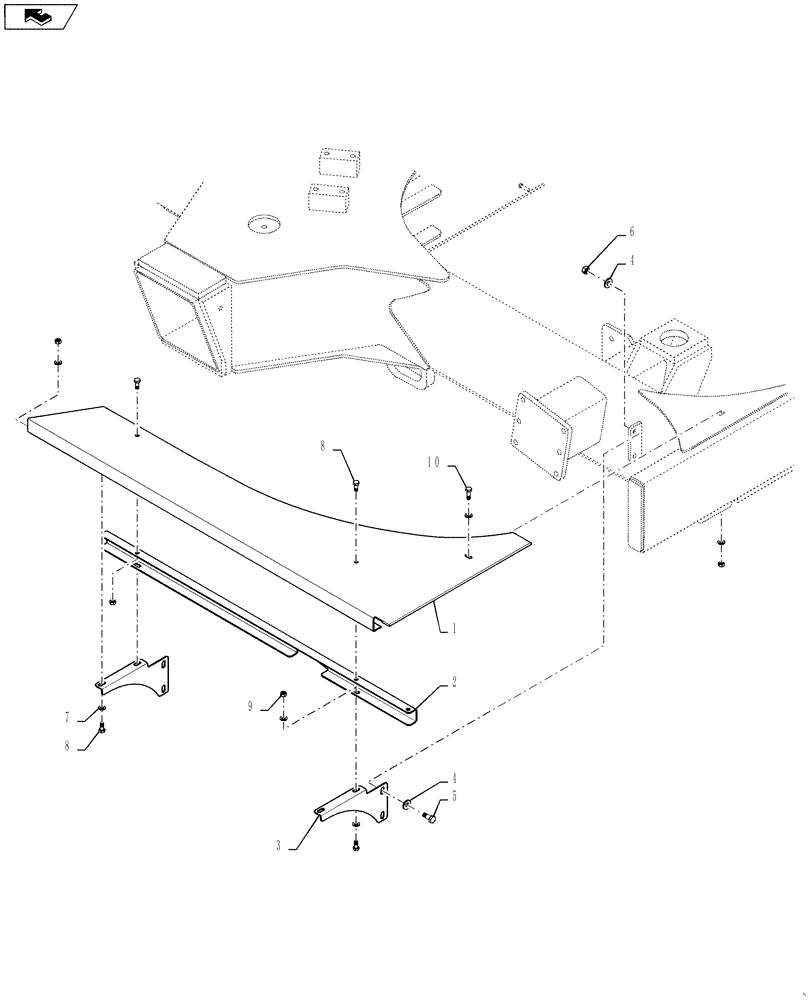

Запчасти Case IH 4420 (04-026) - PLATFORM GROUP, EMERGENCY EXIT Suspension & Frame

1

BN322766

PLATFORM

Emergency Exit

1шт.

2

BN322796

CHANNEL

WALKWAY SUPPORT

1шт.

3

BN322795

BRACKET

WALKWAY SUPPORT

2шт.

4

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

5

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

6

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

7

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

10шт.

8

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

9

9991588

NUT,M8 x 1.25, Cl 8

7шт.

10

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.
