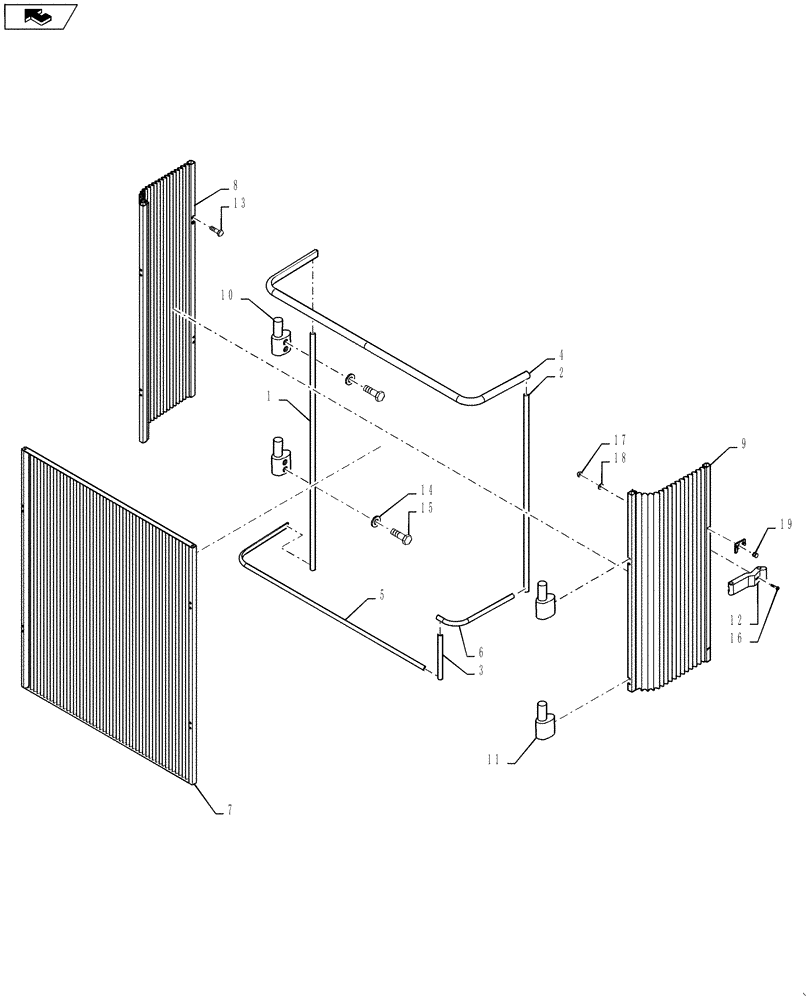

Запчасти Case IH 4420 (04-023) - GRILLE MOUNT GROUP, ENGINE Suspension & Frame

1

84233491

SEAL

BULB SEAL

2шт.

2

84233492

SEAL

BULB SEAL

2шт.

3

84233493

SEAL

BULB SEAL

1шт.

4

84233494

SEAL

BULB SEAL

1шт.

5

84233497

SEAL

BULB SEAL

1шт.

6

84233495

SEAL

BULB SEAL

1шт.

7

BN324876

GRILLE

Radiator, Center

1шт.

8

87267793

GRILLE

Radiator, RH

1шт.

9

BN322404

GRILLE

Radiator, LH

1шт.

10

BN306290

HINGE

NYLON,TYPE A, M6

4шт.

11

BN306286

HINGE

NYLON,TYPE B, M6

2шт.

12

BN307683

LATCH

SOFT, W/CONCEAL KEEP

2шт.

13

86980363

BOLT,Hex, M6 - 1 x 35mm, Cl 8.8, DOR

M6-1 X 35, 8.8, DOR

20шт.

14

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

4шт.

15

87343625

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

Hex Socket, M6 x 16, CL8.8 DOR

4шт.

16

87610705

SCREW,Pan, #8 x 32mm

PHD, TYPE 1, #8-32 X .750 SST

4шт.

17

225-14108

NUT,#8-32

4шт.

18

87529300

WASHER,4.4mm ID x 9mm OD x 0.8mm Thk

4.4 X 9 X 0.8MM CST DOR

4шт.

19

151-515

RIVET,Pop, .146" x .425"

4шт.
