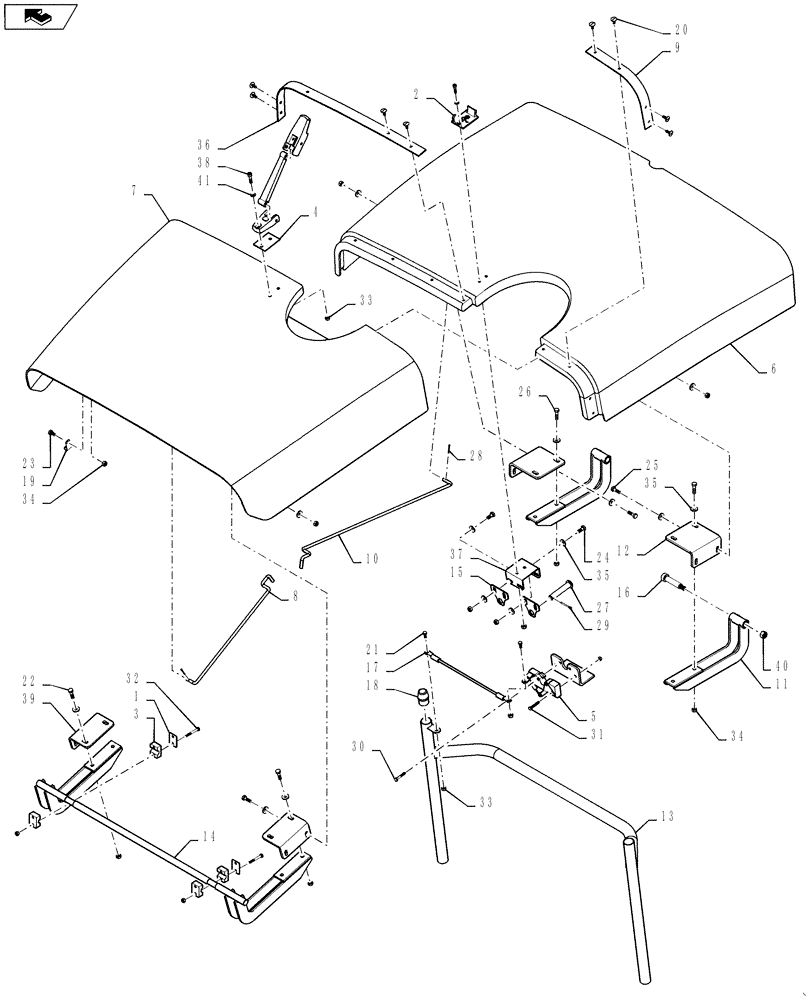

Запчасти Case IH 4420 (04-021[01]) - HOOD GROUP, TOP ACCESS Suspension & Frame

1

BN309485

PLATE

TOP, SINGLE, SIZE 2

2шт.

2

BN310732

LATCH

HOOD, 543

1шт.

3

BN315164

CLAMP

PAIR, SNGL, 5/8 TUBE

2шт.

4

BN315616

LATCH

MOUNT

1шт.

5

318159A1

LATCH

HOOD

1шт.

6

87266778

ENGINE HOOD

Top, Front, Complete

1шт.

7

BN319577

ENGINE HOOD

TOP, REAR, COMP

1шт.

8

BN322420

ROD

REAR HOOD PROP

1шт.

9

BN322436

BELT,1.25" W x 14.00" L

Cotton

1шт.

10

BN322641

ROD

FRONT HOOD PROP

1шт.

11

87268875

HINGE

ENGINE HOOD

2шт.

12

87266788

MOUNTING PLATE

ENGINE HOOD

2шт.

13

BN323984

FRAME

HOOD/LATCH SUPPORT

1шт.

14

87266524

HINGE

REAR ENGINE HOOD

1шт.

15

BN324871

MOUNTING PLATE

TAB, LATCH PIN

2шт.

16

561-705

HEX SOC SCREW,M12 x 82.4, 16 x 60mm shldr, Cl 12.9

2шт.

17

BN325687

LATCH

LANYARD, HOOD

1шт.

18

363226A1

BUMPER

door

2шт.

19

516-2295

CLAMP,J, 7/16" Insul, 5/16" Bolt

2шт.

20

BN52346

POP RIVET

1/8" x .5 SS

10шт.

21

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

22

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

23

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

24

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

10шт.

25

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

26

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

8шт.

27

728-1680

CLEVIS PIN,M16 x 80

1шт.

28

733-2520

COTTER PIN,M2.5 x 20

2шт.

29

733-4032

COTTER PIN,M4 x 32

1шт.

30

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

2шт.

31

120102

BOLT,Hex, M6 x 40mm, Cl 8.8

2шт.

32

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

4шт.

33

353308

NUT,M6 x 1.0, Cl 8

14шт.

34

86528579

NUT,M8 x 1.25

22шт.

35

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

38шт.

36

BN322442

BELT,1.25" W x 29.50" L

Cotton

1шт.

37

86986059

MOUNTING PLATE

Latch/Pin

1шт.

38

86531615

HEX SOC SCREW,M6 x 20mm, Cl 8.8

2шт.

39

87266777

MOUNTING PLATE

ENGINE HOOD

2шт.

40

100038

NUT,M12 x 1.75, Cl 8

2шт.

41

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

4шт.
