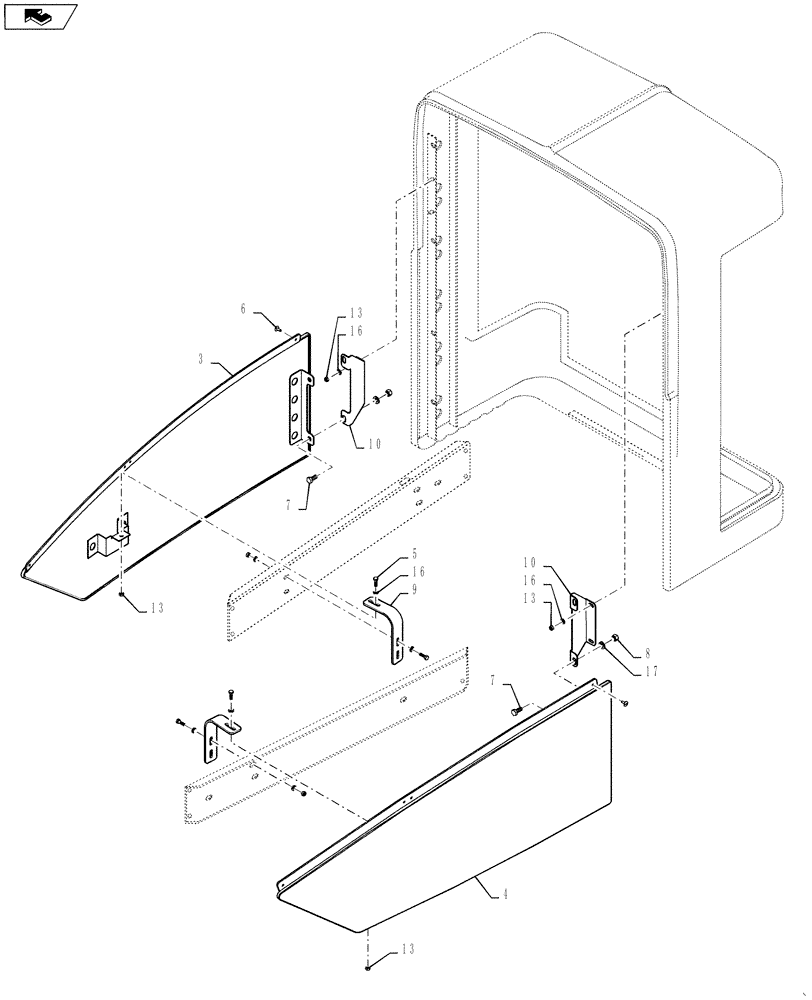

Запчасти Case IH 4420 (04-020) - HOOD MOUNT GROUP, ENGINE, SIDE Suspension & Frame

3

87266220

ENGINE HOOD

SIDE, LH, COMPLETE

1шт.

4

87266223

ENGINE HOOD

SIDE, RH, COMPLETE

1шт.

5

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

6шт.

6

87268898

RIVET

Nylon, Black, 1/4 X .80 Long

8шт.

7

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

4шт.

8

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

4шт.

9

87268911

MOUNTING PLATE

SIDE HOODS

2шт.

10

87270147

MOUNTING PLATE

Side Hoods

2шт.

13

86528579

NUT,M8 x 1.25

10шт.

16

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

14шт.

17

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.
