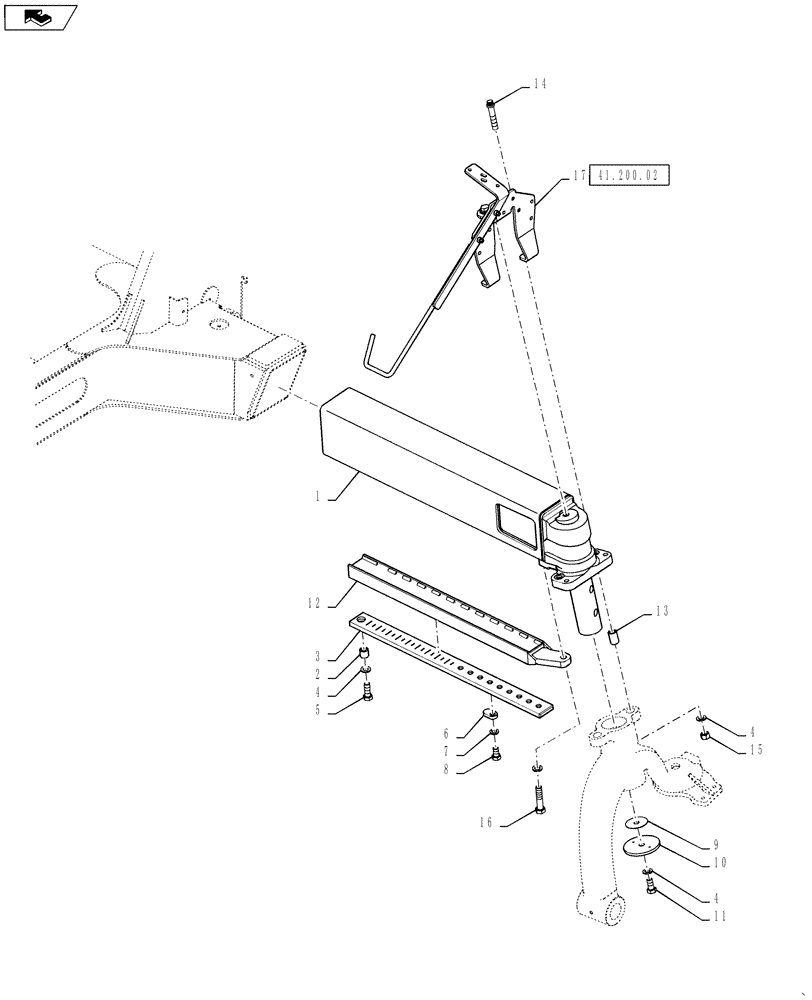

Запчасти Case IH 4420 (04-010) - AXLE GROUP, NON STEER Suspension & Frame

1

87721678

AXLE

Rear

1шт.

2

BN301998

DOWEL

Hollow

1шт.

3

87540210

SLIDE

Bar, Axle

1шт.

4

87529307

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm, HDN, DOR

6шт.

5

87342045

BOLT,Hex, M20 x 2.5 x 55, Class 10.9, DOR

1шт.

6

BN320759

STOP

tab, axle adjust

1шт.

7

892-11020

LOCK WASHER,M20

1шт.

8

87635862

BOLT,Hex, M20 x 35mm, Cl 10.9

Hex, M20 x 35, Full Thrd, 10.9 DOR

1шт.

9

BN312604

SPACER

AXLE

1шт.

10

BN302052

WASHER,20.32mm ID x 139.7mm OD

1шт.

11

87342019

BOLT,Hex, M20 x 2.5 x 40mm, Class 10.9, Full Thd, DOR

M20 X 40 10.9 DOR

1шт.

12

87268928

SLIDE

Axle adjuster, LR

1шт.

12

87268927

SLIDE

Axle adjuster, RR

1шт.

Not Shown

1шт.

13

342939A1

SLEEVE

dowel, hollow

2шт.

14

87268646

BOLT,M20 x 2.5 x 100mm, Cl 12.9

M20-2.5 X 100, 12PT, 12.9, DRL

2шт.

15

87024336

NUT,M20 x 2.5, Cl 10

2шт.

16

87342001

BOLT,Hex, M20 x 90, Class 10.9, DOR

2шт.

17

NSS

NOT SOLD SEPARAT

NON PIVOT

1шт.

Refer to 41.200.02

1шт.
