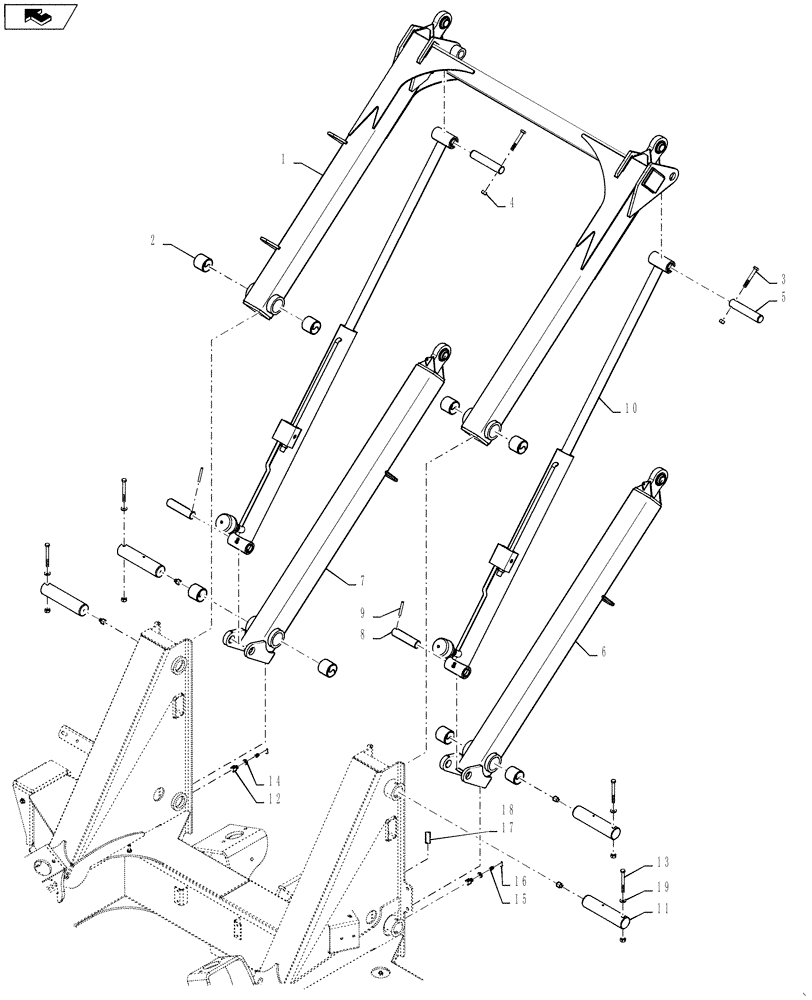

Запчасти Case IH 4420 (04-001[03]) - HITCH GROUP, BOOMS, 60 Suspension & Frame

1

87269369

HITCH

W/M, UPPER LINK

1шт.

2

BN321132

BUSHING,50.8mm ID x 57.96mm OD x 50.8mm L

SPRING

6шт.

3

86980407

BOLT,Hex, M10 x 70mm, Cl 8.8

M10-1.5 X 70, 8.8, DOR

2шт.

4

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

6шт.

5

343874A1

PIN

2шт.

6

87269367

LOWER LINK

LH

1шт.

7

87269368

LOWER LINK

RH

1шт.

8

BN321135

PIN

2шт.

9

838-3860

LOCK PIN,M8 x 60, Slotted

2шт.

10

84226615

CYLINDER GROUP, PARA-LINKS

2шт.

See Fig. 07-014

1шт.

11

343354A1

PIN

PARA-LINKS

4шт.

12

BN53569

ELBOW

GREASE, 1/8 NPT

8шт.

13

87341848

BOLT,Hex, M10 x 100mm, Cl 10.9

M10 x 100, CL10.9, DOR

4шт.

14

BN53570

BHD LOCK NUT

4шт.

15

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

4шт.

16

BN69951

CAP

Grease

4шт.

17

BN316482

HOSE,0.13" ID x 40.00", SAE 100R7

GREASE, 1/8 X 40

2шт.

18

BN35810

HOSE,0.13" ID x 16.00", SAE 100R7

Grease

2шт.

19

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.
