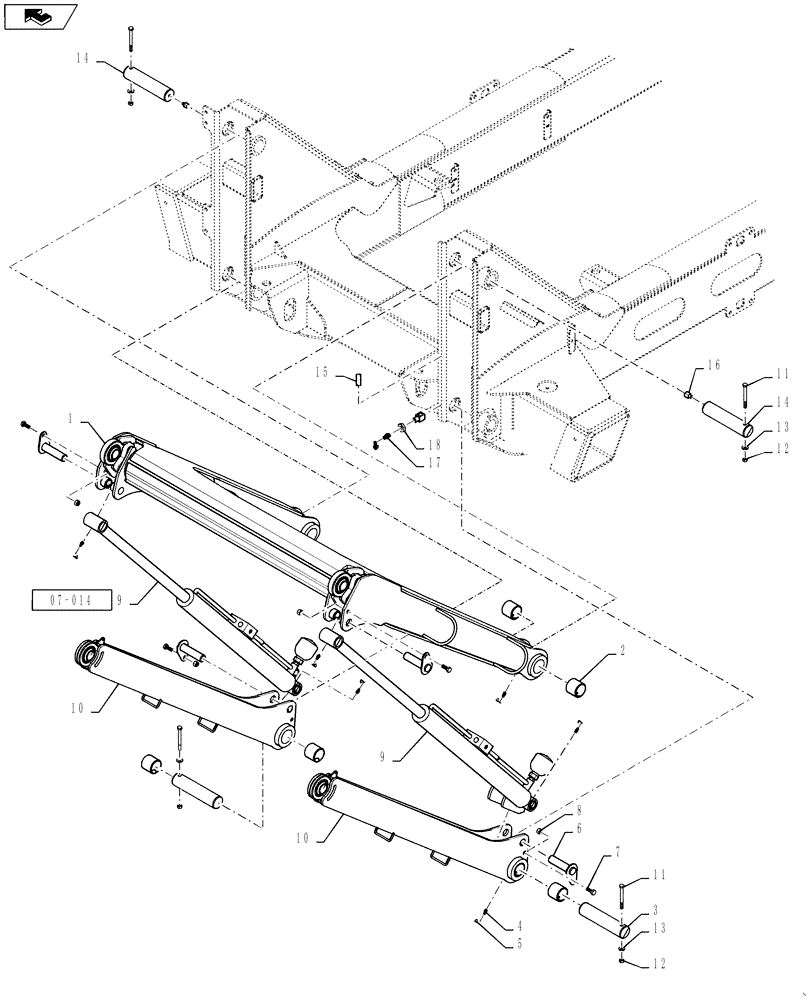

Запчасти Case IH 4420 (04-001[02]) - HITCH GROUP,BOOMS, ASN Y9T026173 Suspension & Frame

1

84158058

LIFT LINK

Upper

1шт.

2

BN321132

BUSHING,50.8mm ID x 57.96mm OD x 50.8mm L

Spring

8шт.

3

87267199

PIN

Para-Links

2шт.

4

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE Grease, 8MM X 1 STR

4шт.

5

BN69951

CAP

Grease

6шт.

6

87271475

PIN

Linkages

4шт.

7

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

8

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

4шт.

9

87268686

Cylinder Group, Para-Links

2шт.

See Fig. 07-014

1шт.

10

84158059

LIFT LINK

Lower

2шт.

11

87341848

BOLT,Hex, M10 x 100mm, Cl 10.9

M10 x 100, CL10.9, DOR

4шт.

12

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

13

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

14

343354A1

PIN

Para-Links

2шт.

15

BN316482

HOSE,0.13" ID x 40.00", SAE 100R7

GREASE, 1/8 X 40

2шт.

16

BN53569

ELBOW

GREASE, 1/8 NPT BH90

4шт.

17

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

2шт.

18

BN53570

BHD LOCK NUT

2шт.
