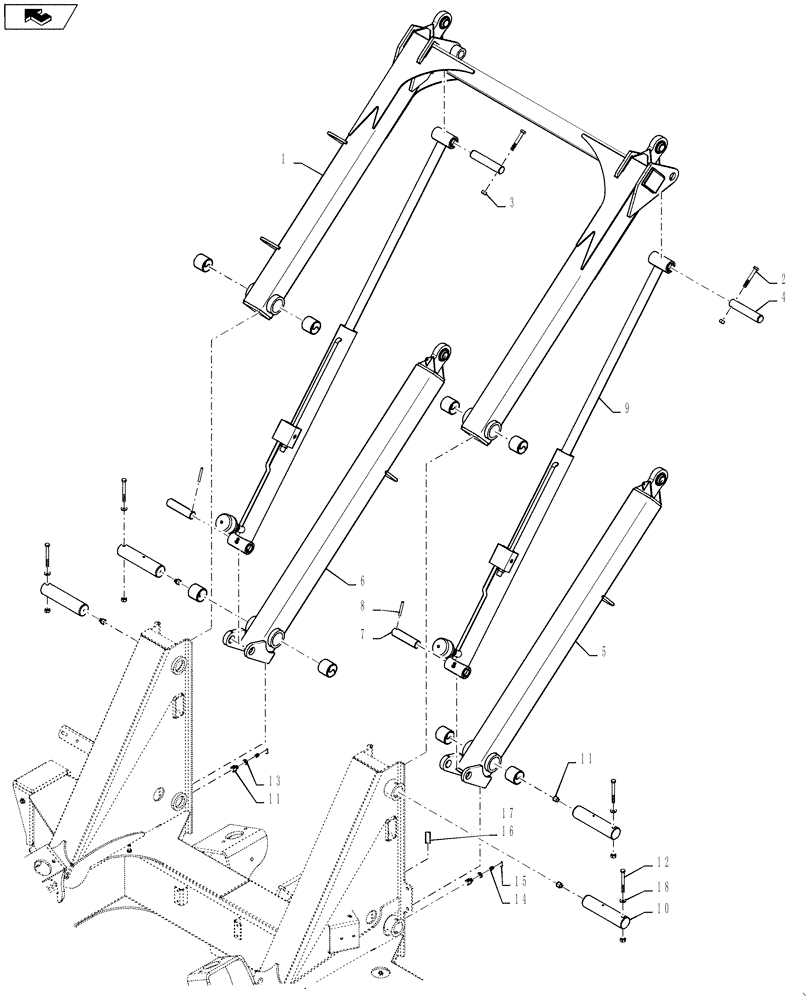

Запчасти Case IH 4420 (04-001[01]) - HITCH GROUP, BOOMS, BSN Y9T026174 Suspension & Frame

1

NS

NOT SERVICED

Link Group, Upper

1шт.

See Fig. 04-002

1шт.

2

86980407

BOLT,Hex, M10 x 70mm, Cl 8.8

M10-1.5 X 70, 8.8, DOR

2шт.

3

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

6шт.

4

343874A1

PIN

2шт.

5

NS

NOT SERVICED

Link Group, Lower LH

1шт.

See Fig. 04-004

1шт.

6

NS

NOT SERVICED

Link Group, Lower RH

1шт.

See Fig. 04-003

1шт.

7

BN321135

PIN

2шт.

8

838-3860

LOCK PIN,M8 x 60, Slotted

2шт.

9

87267881

CYLINDER

Group, Para-Links

2шт.

See Fig. 07-014

1шт.

10

343354A1

PIN

Boom Hitch, 2"

4шт.

11

BN53569

ELBOW

GREASE, 1/8 NPT BH90

8шт.

12

87341848

BOLT,Hex, M10 x 100mm, Cl 10.9

M10 x 100, CL10.9, DOR

4шт.

13

BN53570

BHD LOCK NUT

4шт.

14

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

4шт.

15

BN69951

CAP

Grease

4шт.

16

BN316482

HOSE,0.13" ID x 40.00", SAE 100R7

GREASE-1/8” X 40”

2шт.

17

BN35810

HOSE,0.13" ID x 16.00", SAE 100R7

Grease

2шт.

18

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.
